Crane
Advantages:

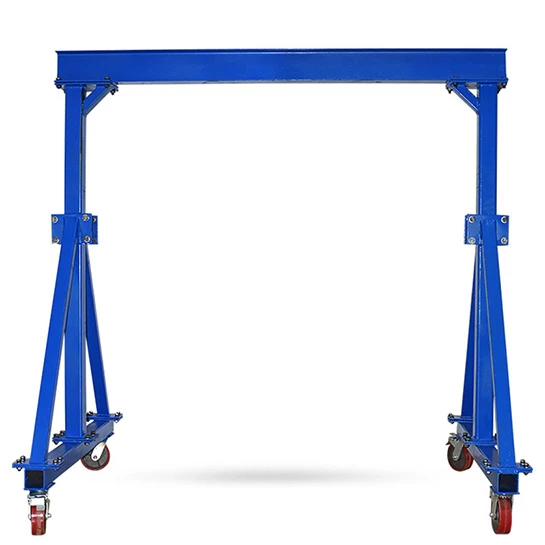

• Heavy Duty Mobile Steel Gantry Crane
• 4 lockable mobile casters, fix the gantry firmly during lifting operation
• Simple bolt assembly, easy to install
• Anti-rust spray coated surface
• Stable lifting performance,compact portable design
• Height , voltage etc. all can accept Customize
| Rated load(ton) | Total height(mm) | Max.Lifting height(mm) | Outside span(mm) | Inner span(mm) | H Height(mm) |
| 1 | 2000-3000 | 2470 | 3000 | 2880 | 410 |
| 1 | 2000-3000 | 2470 | 4000 | 3880 | 410 |
| 1 | 2600-4000 | 3470 | 3000 | 2880 | 410 |
| 1 | 2600-4000 | 3470 | 4000 | 3880 | 410 |
| 2 | 2000-3000 | 2215 | 3000 | 2800 | 535 |
| 2 | 2000-3000 | 2215 | 4000 | 3800 | 535 |
| 2 | 2600-4000 | 3315 | 3000 | 2800 | 535 |
| 2 | 2600-4000 | 3315 | 4000 | 3800 | 535 |
| 3 | 2000-3000 | 2122 | 3000 | 2800 | 685 |
| 3 | 2000-3000 | 2122 | 4000 | 3800 | 685 |
| 3 | 2600-4000 | 3122 | 3000 | 2800 | 685 |
| 3 | 2600-4000 | 3122 | 4000 | 3800 | 685 |
