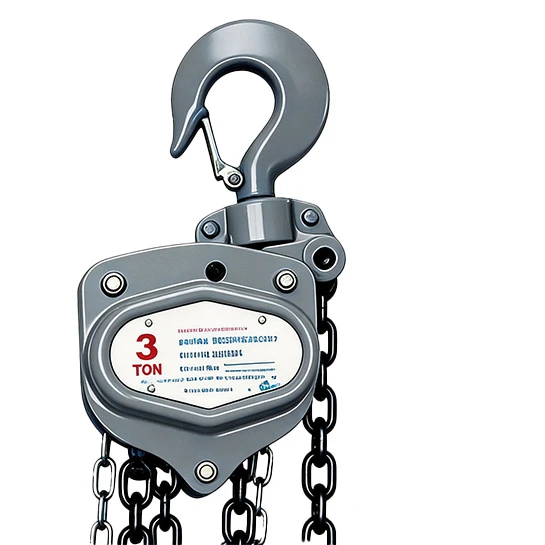

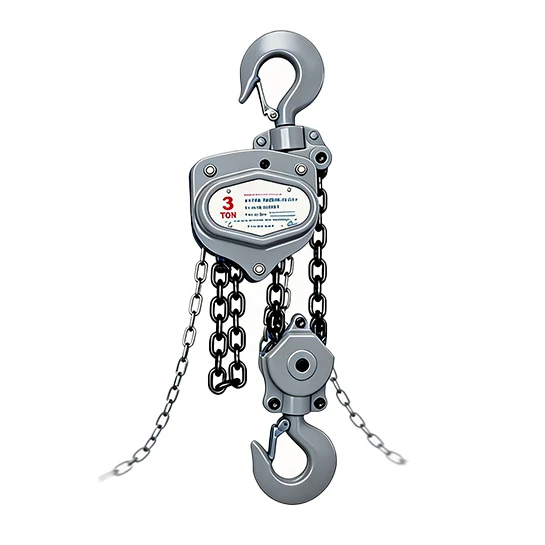

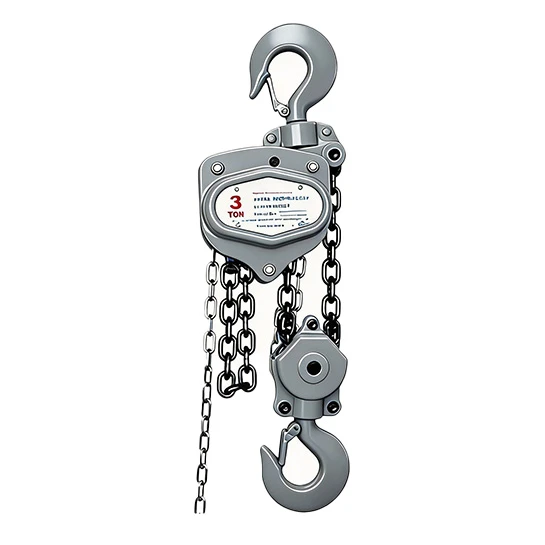

Chain Hoist

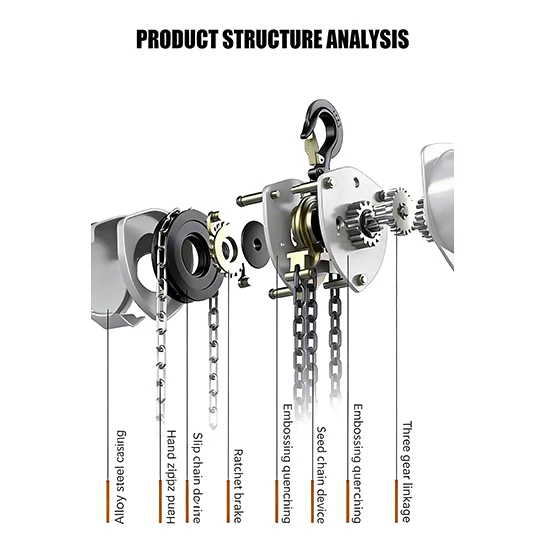

Advantages
• Quenched manganese steel hook, 360° rotation
• Hook frame fixed with large nuts, safe and reliable
• Double guide wheel, reduce the phenomenon of stuck chain
• High temperature quenching G80 chain
• Alloy steel shell, anti-drop wear
|
Model |
VY-1/2 |
VY-1 |
VY-1/2 |
VY-2 |
VY-3 |
VY-5 |
VY-10 |
|
|
Capacity（t） |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
|
|
Lifting height（m） |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3.5 |
|
|
Test load（t） |
0.625 |
1.25 |
1.875 |
2.5 |
3.75 |
6.25 |
12.5 |
|
|
Hmin Headroom（hook to hook）Hmin（mm） |
285 |
315 |
340 |
380 |
475 |
600 |
700 |
|
|
Chainpull to lift full load（N） |
25 |
33 |
34 |
34 |
35 |
39 |
41 |
|
|
No.of load chain fall lines |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
|
|
Diameter of load chain（mm） |
6*18 |
6*18 |
8*10 |
8*10 |
8*10 |
10*30 |
10*30 |
|
|
Dimension(mm) |
A |
131 |
140 |
161 |
161 |
161 |
186 |
207 |
|
B |
127 |
158 |
187 |
187 |
210 |
253 |
398 |
|
|
C |
270 |
317 |
399 |
414 |
465 |
636 |
798 |
|
|
D |
35 |
40 |
45 |
50 |
58 |
64 |
85 |
|
|
K |
30 |
34 |
38 |
41 |
48 |
52 |
64 |
|
|
Net weight(kg) |
12 |
12 |
20 |
20 |
21 |
37 |
70 |
|
|
Gross weight(kg) |
13 |
13 |
21 |
21 |
23 |
39.5 |
76 |
|
|
Packing MEAS (L*W*H)(cm) |
30x20.5x20.5 |
30x20.5x20.5 |
34x21.5x28 |
34x21.5x28 |
38x26x20 |
38x29x22 |
53x24x47 |
|
