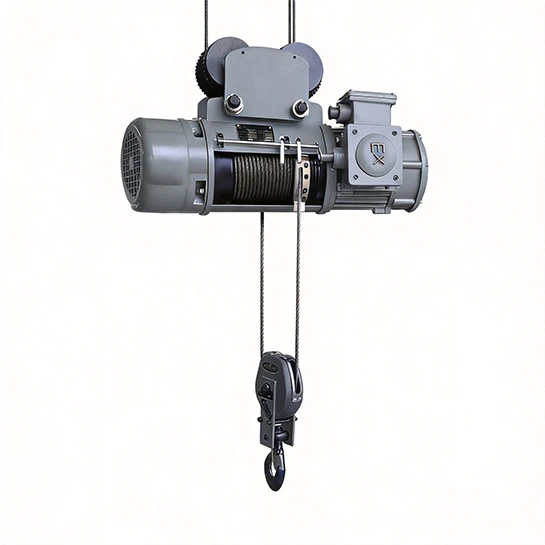

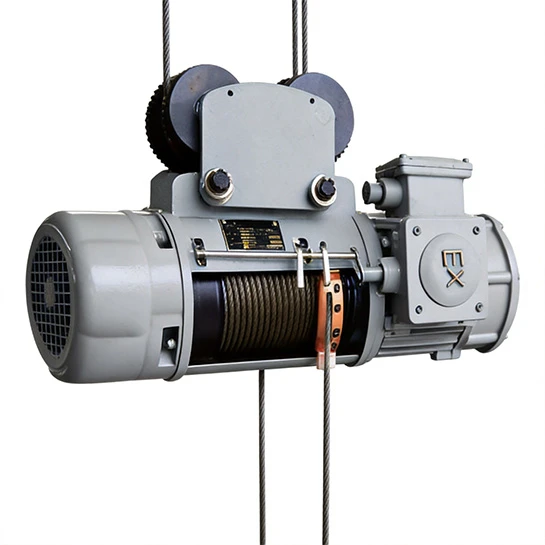

Electric Hoist
Advantages :
• Certified explosion-proof construction, safe for flammable & explosive working areas
• Explosion-proof brake motor + hard-tooth reducer, steady lifting & low breakdown rate
• Compact & light, fits most crane systems to save mounting space
• Versatile tonnage , compatible with straight/curved/ring rails
• Simple structure, easy commissioning and daily maintenance
• Fully sealed dustproof shell to isolate hazardous gas and dust
| Model | CD1/MD1 | ||||||
| Capacity (t) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Lifting Height (m) | 3~30m | ||||||
| Hoisting Speed (m/min) | 8;8/0.8 | 8;8/0.8 | 8;8/0.8 | 8;8/0.8 | 8;8/0.8 | 7;7/0.7 | |
| Operating Speed(m/min) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | |
| Diameter of wire rope(mm) | 4.8 | 7.4 | 11 | 13 | 15 | 17 | |
| Type of I-Beam | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | |
| Lifting Motor | Power(kw) | 0.8 0.2/0.8 | 1.5 0.2/0.8 | 3 0.4/3 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 |
| Rotation speed (m/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | |
| Phases | 3 | 3 | 3 | 3 | 3 | 3 | |
| Voltage (v) | 380 | 380 | 380 | 380 | 380 | 380 | |
| Frequency(Hz) | 50 | 50 | 50 | 50 | 50 | 50 | |
| Electric current (A) | 2.4 72/2.4 | 4.3 0.72/4.3 | 7.6 1.25/7.6 | 11 2.4/11 | 18 2.4/18 | 30 4.3/30 | |
| Running motor | Power (kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 |
| Rotation speed(m/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
| Phases | 3 | 3 | 3 | 3 | 3 | 3 | |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | |
| Electric current (A) | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4*2 | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | |
| Working Level | M3 | M3 | M3 | M3 | M3 | M3 | |
| Note: The voltage accept customization | |||||||
