Electric Hoist
• We are professional with electric chain hoist with rich production experience over 30 years.
• Electric chain hoist capacity from 500kg to 100T, fixed type or trolley running type .
• All the electric chain hoist have CE & ISO9001 certification.
• Electric chain hoist with light but hard shell.
• G80 Carburized chain with good quality, more durabl.
• Hook be hot forged with perfect strength , hard to break.
• Push button, remote control with high quality.
• Electric chain hoist can be equipped with rain cover , travel limiter，Phase Sequence Protector.
• Single speed or dual speed as your required.
• Three phase electric chain hoist : voltage from 110V-440V , 50/60HZ , 3 phase, and we can also produce single phase chain hoist.
• Color can be made as your required.
• OEM available.

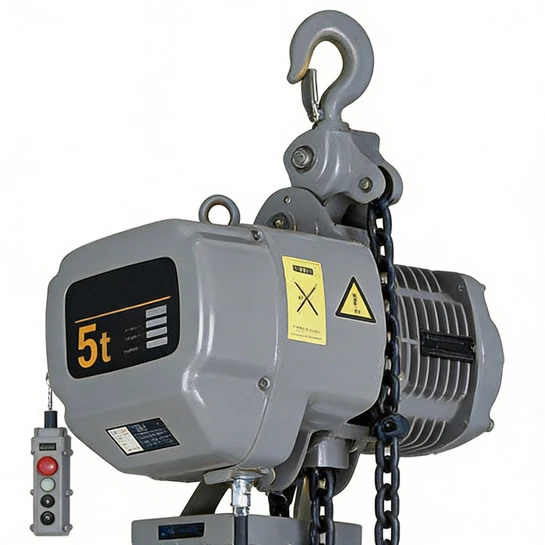

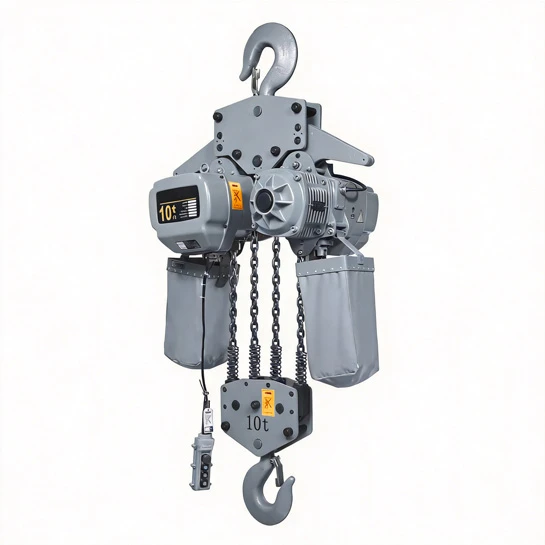

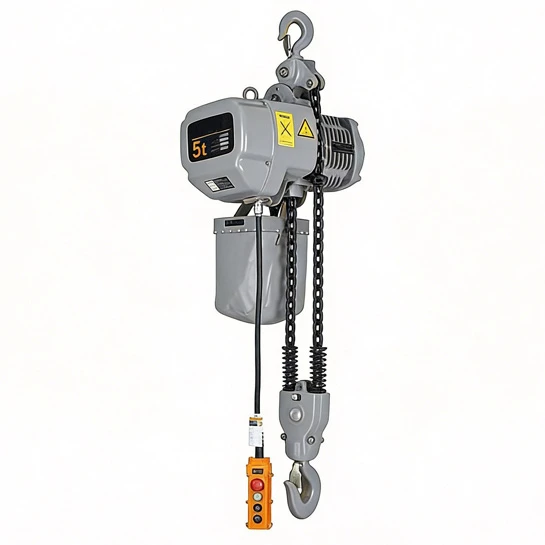

The HHBB electric chain hoist is designed for lifting and lowering loads in workshops, warehouses, production facilities, and industrial maintenance environments. Available in different rated capacities and configurations, it can be selected according to lifting requirements, installation conditions, and power supply specifications.
Lihua Hoisting offers HHBB electric chain hoists with lifting capacities starting from 500 kg, with different chain configurations, lifting speeds, and control options available. Fixed and trolley-mounted configurations can be selected according to the intended application. Customized lifting heights and other available options can be discussed when requesting a quotation.
The HHBB electric chain hoist uses a G80 carburized load chain and a forged lifting hook. These components are designed to withstand the forces associated with rated lifting operations. Regular inspection and operation within the specified load limits remain essential for safe use.
Different lifting capacities are available to accommodate a range of material-handling requirements. Choosing the correct model requires considering the maximum load, lifting frequency, required lifting height, and applicable working conditions.
Depending on the selected configuration, the HHBB electric chain hoist can be supplied with single-speed or dual-speed lifting. Dual-speed operation provides an additional lower-speed setting that can help operators position loads more precisely. Confirm the available speed options for the specific model before ordering.
Push-button controls and remote-control options are available according to the configuration. The product range supports different voltage and frequency requirements, subject to model specifications. Customers should confirm the local power supply and phase requirements before placing an order.
Depending on the application and model, optional equipment may include a rain cover, travel limiter, and phase sequence protector. These options should be selected according to the installation environment and the required operating functions.

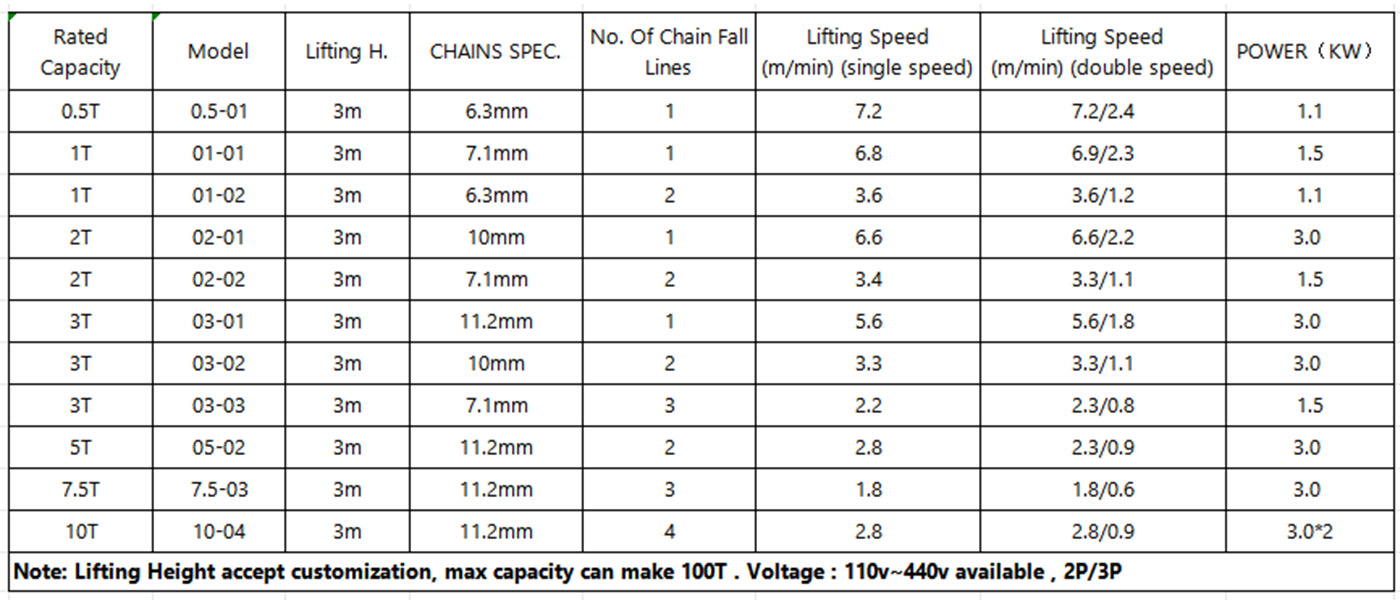

| Rated Capacity | Model | Lifting H. | CHAINS SPEC. | No. of Chain Fall Lines | Lifting Speed (m/min) (single speed) | Lifting Speed (m/min) (double speed) | POWER（KW） |
| 0.5T | 0.5-01 | 3m | 6.3mm | 1 | 7.2 | 7.2/2.4 | 1.1 |
| 1T | 01-01 | 3m | 7.1mm | 1 | 6.8 | 6.9/2.3 | 1.5 |
| 1T | 01-02 | 3m | 6.3mm | 2 | 3.6 | 3.6/1.2 | 1.1 |
| 2T | 02-01 | 3m | 10mm | 1 | 6.6 | 6.6/2.2 | 3.0 |
| 2T | 02-02 | 3m | 7.1mm | 2 | 3.4 | 3.3/1.1 | 1.5 |
| 3T | 03-01 | 3m | 11.2mm | 1 | 5.6 | 5.6/1.8 | 3.0 |
| 3T | 03-02 | 3m | 10mm | 2 | 3.3 | 3.3/1.1 | 3.0 |
| 3T | 03-03 | 3m | 7.1mm | 3 | 2.2 | 2.3/0.8 | 1.5 |
| 5T | 05-02 | 3m | 11.2mm | 2 | 2.8 | 2.3/0.9 | 3.0 |
| 7.5T | 7.5-03 | 3m | 11.2mm | 3 | 1.8 | 1.8/0.6 | 3.0 |
| 10T | 10-04 | 3m | 11.2mm | 4 | 2.8 | 2.8/0.9 | 3.0*2 |
| Note: Lifting height accept customization, max capacity can make 100T. Voltage: 110V~440V available, 2P/3P | |||||||
The HHBB electric chain hoist can support lifting and positioning tasks involving machinery components, production materials, and assembled parts. The appropriate model depends on the rated load and the lifting frequency required by the production process.
In suitable installations, the hoist can assist with lifting goods between designated handling positions. Where horizontal load movement is also required, a compatible trolley configuration should be selected.
Maintenance teams can use an appropriately rated electric chain hoist to raise and position equipment components during installation, inspection, and replacement work.
A fixed or trolley-mounted configuration can be selected according to the layout of the workstation and the required load movement. Beam compatibility and available installation clearance should be checked before installation.
An HHBB electric chain hoist is a powered lifting device that uses a load chain to raise and lower materials. It is available in different capacities and configurations for industrial material handling.
Lihua lists HHBB electric chain hoist models starting at 500 kg, with larger capacities available. Confirm the exact model range and configuration with the supplier.
Yes. Lifting height can be customized according to the available product configuration and project requirements. Confirm the required height when requesting a quotation.
Yes. Trolley-mounted versions are available for applications requiring horizontal travel along a compatible beam. See the HHBB Running Electric Chain Hoist page for the corresponding product configuration.
Single-speed and dual-speed options are available according to the model. Confirm the rated lifting speeds and motor specifications for your selected capacity.
Looking for an HHBB electric chain hoist for your lifting application? Contact Lihua Hoisting with your required capacity, lifting height, electrical specifications, and installation requirements.
Our team can help you confirm the available models, compare technical configurations, and identify a suitable lifting solution for your project. Request a quotation to discuss product specifications, available options, and order requirements.
