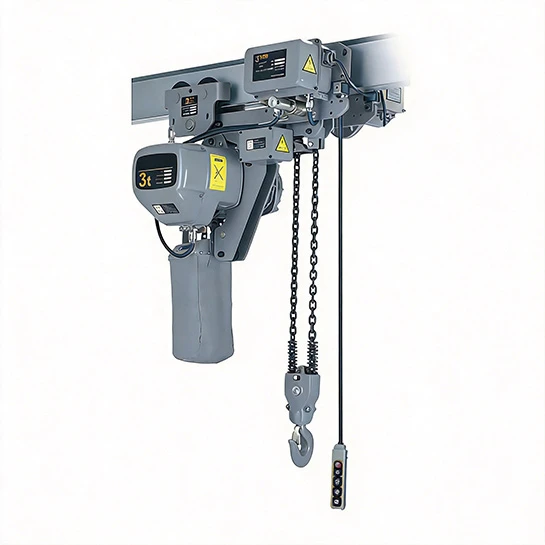

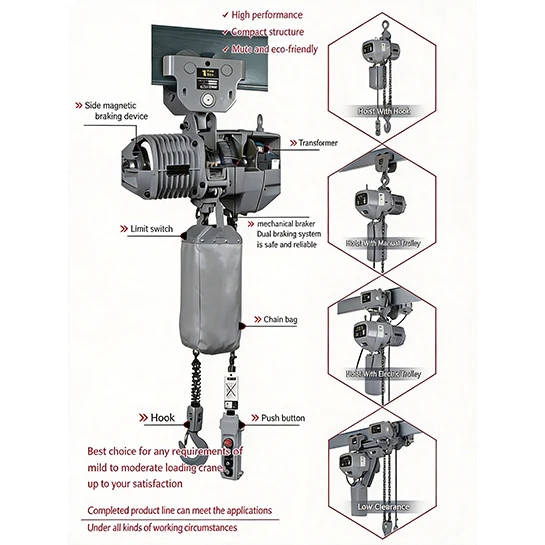

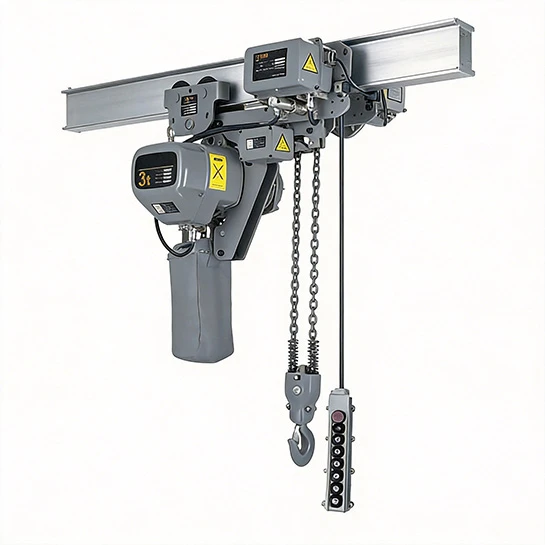

Electric Hoist
• We are professional with electric chain hoist with rich production experience over 30 years.

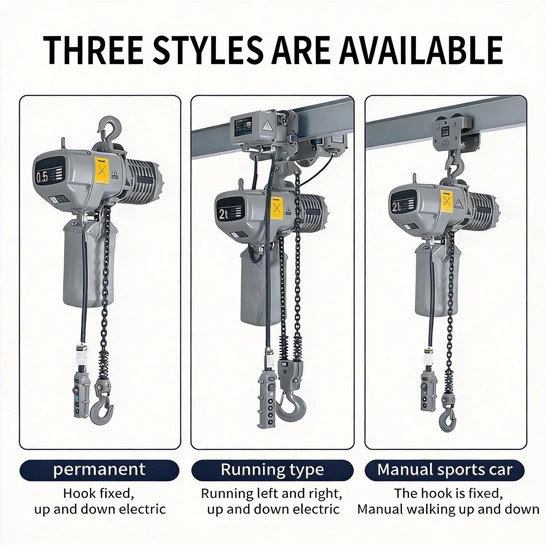

• Electric chain hoist capacity from 500kg to 100T, fixed type or trolley running type .
• All the electric chain hoist have CE & ISO9001 certification.
• Electric chain hoist with light but hard shell.
• G80 Carburized chain with good quality, more durabl.

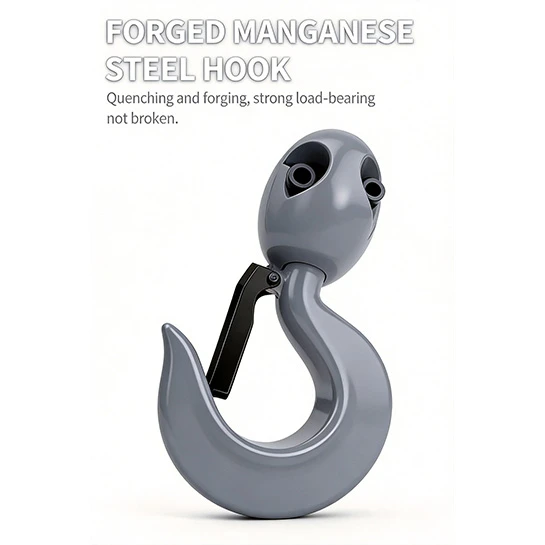

• Hook be hot forged with perfect strength , hard to break.

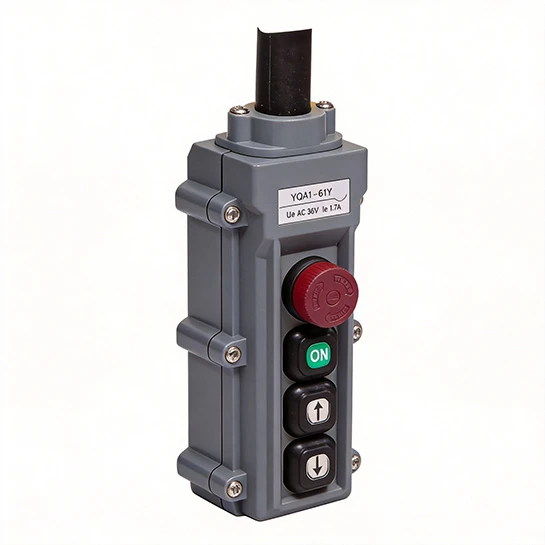

• Push button, remote control with high quality.
• Electric chain hoist can be equipped with rain cover , travel limiter，Phase Sequence Protector.
• Single speed or dual speed as your required.
• Three phase electric chain hoist : voltage from 110V-440V , 50/60HZ , 3 phase, and we can also produce single phase chain hoist.
• Color can be made as your required.
• OEM available.

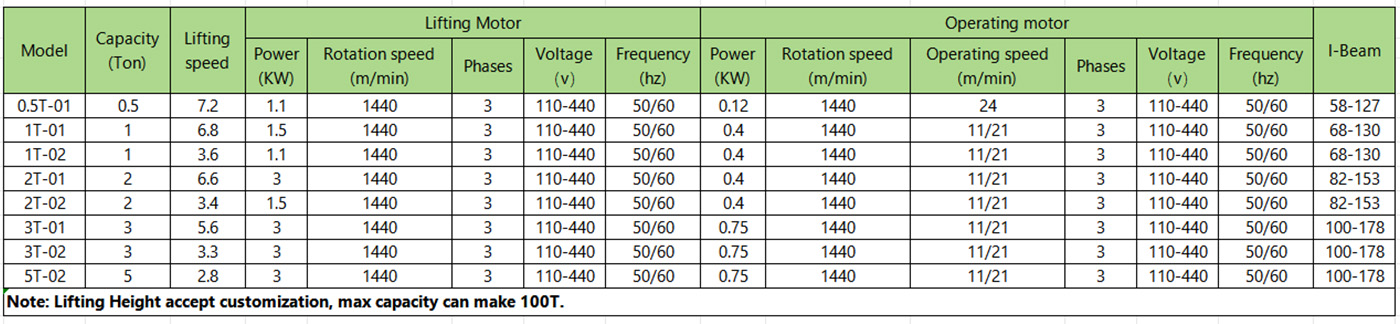

| Model | Capacity (Ton) | Lifting speed | Lifting Motor | Operating motor | I-Beam | |||||||||
| Power (KW) | Rotation speed (m/min) | Phases | Voltage (v) | Frequency (hz) | Power (KW) | Rotation speed (m/min) | Operating speed (m/min) | Phases | Voltage (v) | Frequency (hz) | ||||
| 0.5T-01 | 0.5 | 7.2 | 1.1 | 1440 | 3 | 110-440 | 50/60 | 0.12 | 1440 | 24 | 3 | 110-440 | 50/60 | 58-127 |
| 1T-01 | 1 | 6.8 | 1.5 | 1440 | 3 | 110-440 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 110-440 | 50/60 | 68-130 |
| 1T-02 | 1 | 3.6 | 1.1 | 1440 | 3 | 110-440 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 110-440 | 50/60 | 68-130 |
| 2T-01 | 2 | 6.6 | 3 | 1440 | 3 | 110-440 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 110-440 | 50/60 | 82-153 |
| 2T-02 | 2 | 3.4 | 1.5 | 1440 | 3 | 110-440 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 110-440 | 50/60 | 82-153 |
| 3T-01 | 3 | 5.6 | 3 | 1440 | 3 | 110-440 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 110-440 | 50/60 | 100-178 |
| 3T-02 | 3 | 3.3 | 3 | 1440 | 3 | 110-440 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 110-440 | 50/60 | 100-178 |
| 5T-02 | 5 | 2.8 | 3 | 1440 | 3 | 110-440 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 110-440 | 50/60 | 100-178 |
| Note: Lifting Height accept customization, max capacity can make 100T. | ||||||||||||||
