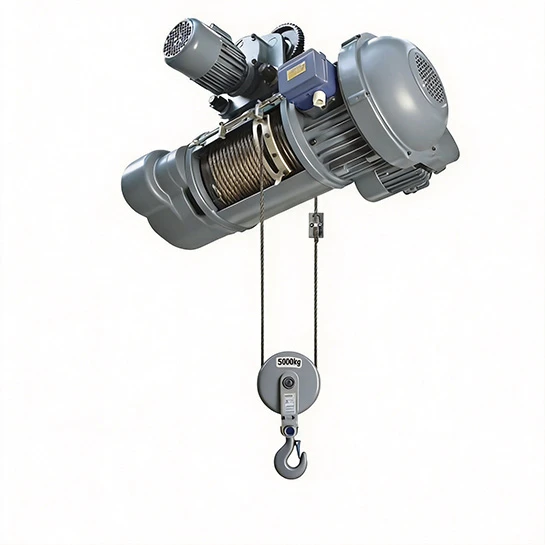

MD type electric wire rope hoist

Advantages:
• Lightweight & Compact Structure

Small footprint and light dead weight for easy integration with single-girder, jib, gantry

and other crane systems, saving valuable installation space.

• High Mechanical Reliability

Equipped with conical rotor brake motor and hardened gear reducer for integrated

power and braking. It runs smoothly with minimal failure rate

• Easy Operation & Low Maintenance

Simple, intuitive structure with no complicated commissioning required. Routine

lubrication

and inspection are hassle-free, perfectly suited for industrial sites with frequent

start-stop cycles.

• Wide Compatibility & Versatile Application

Available for standalone overhead mounting or matched with all types of cranes.

Compatible with straight, curved and circular tracks, covering full tonnage range

• CE & ISO9001 quality control certificate

Model		CD1/MD1
Capacity (t)		0.5	1	2	3	5	10
Lifting Height (m)		3~30m
Hoisting Speed (m/min)		8;8/0.8	8;8/0.8	8;8/0.8	8;8/0.8	8;8/0.8	7;7/0.7
Operating Speed(m/min)		20(30)	20(30)	20(30)	20(30)	20(30)	20(30)
Diameter of wire rope(mm)		4.8	7.4	11	13	15	17
Type of I-Beam		16-28b	16-28b	20a-32c	20a-32c	25a-63c	25a-63c
Lifting Motor	Power(kw)	0.8 0.2/0.8	1.5 0.2/0.8	3 0.4/3	4.5 0.4/4.5	7.5 0.8/7.5	13 1.5/13
	Rotation speed (m/min)	1380	1380	1380	1380	1380	1400
	Phases	3	3	3	3	3	3
	Voltage (v)	380	380	380	380	380	380
	Frequency(Hz)	50	50	50	50	50	50
	Electri ccurrent (A)	2.4 72/2.4	4.3 0.72/4.3	7.6 1.25/7.6	11 2.4/11	18 2.4/18	30 4.3/30
Running motor	Power (kw)	0.2	0.2	0.4	0.4	0.8	0.8*2
	Rotation speed(m/min)	1380	1380	1380	1380	1380	1380
	Phases	3	3	3	3	3	3
	Voltage (V)	380	380	380	380	380	380
	Electric current (A)	0.72	0.72	1.25	1.25	2.4	2.4*2
	Frequency (Hz)	50	50	50	50	50	50
Working Level		M3	M3	M3	M3	M3	M3
Note: The voltage accept customization
