Electric Hoist
• Compling with latest EU standard EN14492-2

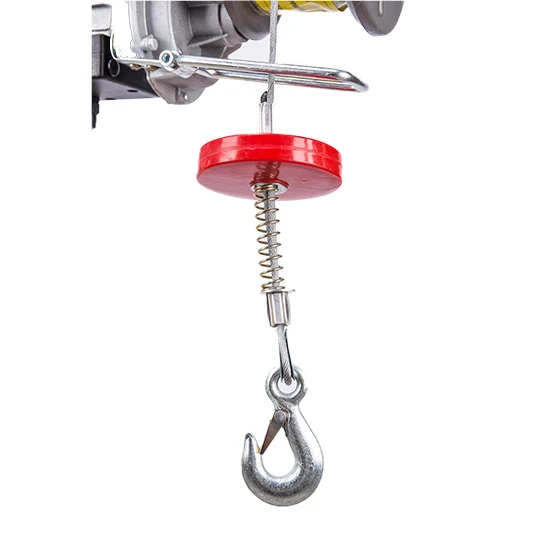

• Upper and lower limit device
• Thermal protection terminal
• Anti-reverse winding device
• Copper winding motor

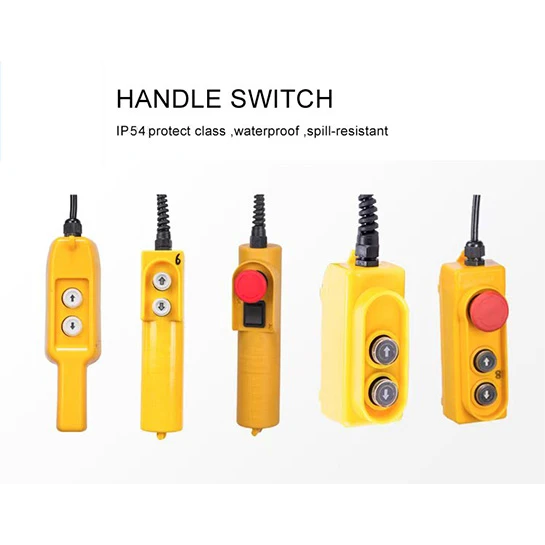

• Protection class lP54

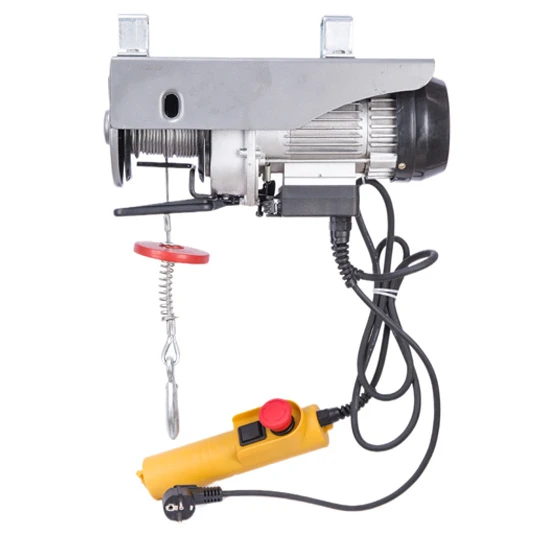

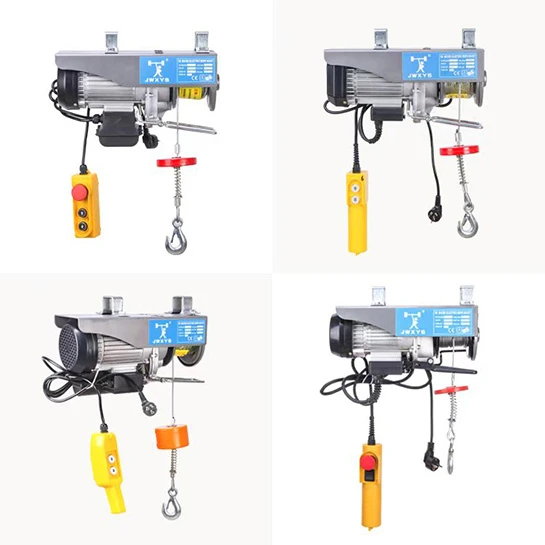

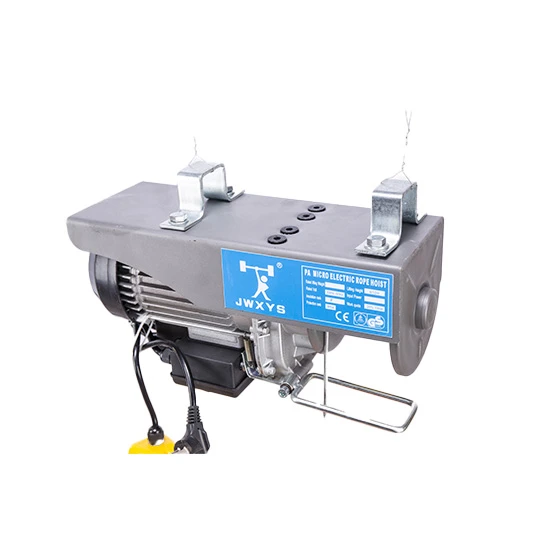

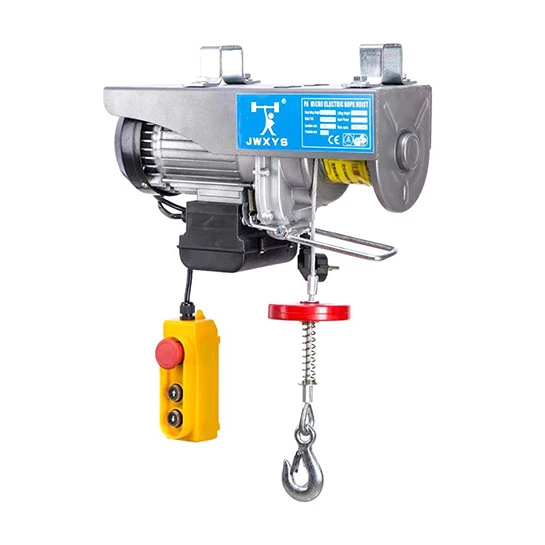

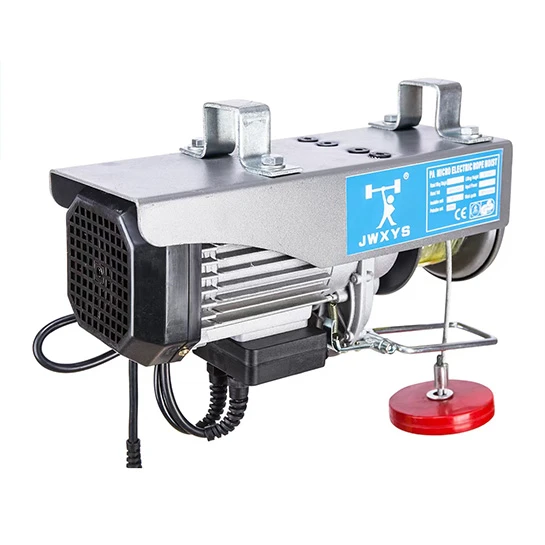

The Lihua Mini Electric Hoist is a compact lifting solution for workshops, garages, warehouses, small production areas and equipment maintenance applications. With models from PA200 to PA1200, buyers can select the appropriate configuration according to load weight, lifting speed and operating requirements.
Its compact design makes this small electric hoist suitable for applications where a full-size industrial electric hoist is unnecessary or installation space is limited.
● PA200 to PA1200 models available
● Multiple lifting capacities for different light-duty applications
● 220/230V rated voltage
● Up to 12 m standard lifting height
● Upper and lower limit protection
● Thermal protection for the motor
● Anti-reverse winding protection
● Copper winding motor
● IP54 protection class
|
Model number
|
Rated Volt（V）
|
Input Power(W)
|
Rated Lifting Weight(KG)
|
Lifting Speed（m/min）
|
Lifting Height（m）
|
Packing Dimension（cm）
|
GW/N.W.（KG）
|
|
PA200
|
220/230
|
450W
|
100/200kg
|
10/5
|
12m
|
36*14*22（2pcs）
|
11.5/11
|
|
PA250
|
220/230
|
500W
|
125/250kg
|
10/5
|
12m
|
36*14*22（2pcs）
|
11.7/11.2
|
|
PA300
|
220/230
|
550W
|
150/300kg
|
10/5
|
12m
|
36*14*22（2pcs）
|
12.5/12
|
|
PA400
|
220/230
|
760W
|
200/400kg
|
10/5
|
12m
|
42*15*25（2pcs）
|
15.5/15
|
|
PA500
|
220/230
|
920W
|
250/500kg
|
10/5
|
12m
|
42*15*25（2pcs）
|
16/15.5
|
|
PA600
|
220/230
|
1100W
|
300/600kg
|
10/5
|
12m
|
42*15*25（2pcs）
|
17/16.5
|
|
PA800
|
220/230
|
1400W
|
400/800kg
|
10/5
|
12m
|
42*15*25（2pcs）
|
18.5/18
|
|
PA1000
|
220/230
|
1650W
|
500/1000kg
|
10/5
|
12m
|
55*24*31 (1pcs)
|
29.5/28.5
|
|
PA1200
|
220/230
|
1800W
|
600/1200kg
|
10/5
|
12m
|
55*24*31 (1pcs)
|
30.5/29.5
|
Please confirm the required lifting configuration, as rated capacity and lifting speed vary by configuration.
Before selecting a model, buyers should mainly confirm the following factors:
Choose the model according to the maximum actual load rather than the average load.
The PA series provides different rated lifting capacities, so the correct model should be selected according to the required working load and lifting configuration.
The standard specification shown for this series is 12 m. If your installation requires a different lifting height, confirm the requirement before ordering.
Different lifting configurations affect lifting speed. The current PA series specifications list lifting speeds of 10/5 m/min.
If lifting efficiency is important for your application, confirm the required load, lifting method and expected operating speed before model selection.
The standard models listed on this page are rated for 220/230V.
For export orders, please confirm the voltage, frequency and local electrical requirements before placing an order.
Mini electric hoists are generally more suitable for light-duty and intermittent lifting than continuous heavy industrial lifting.
If the Electric Hoist will operate frequently throughout the working day, provide your expected operating frequency so that Lihua can recommend a more suitable electric hoist type if necessary.
This small electric hoist can be considered for:
● Workshop lifting
● Garage maintenance
● Warehouse handling
● Small machinery installation
● Equipment repair
● Light production and assembly
● Tool and component lifting
● General indoor material handling
For heavier loads, frequent lifting cycles or demanding industrial environments, an electric chain hoist or wire rope electric hoist may be more appropriate.
Looking for a reliable Mini Electric Hoist or Small Electric Hoist for your project?
Send us your required load capacity, lifting height, voltage, quantity and application. Lihua will help you select the suitable PA series model and provide a quotation based on your lifting requirements.
Contact Lihua for Mini Electric Hoist Pricing and Model Selection.
