Electric Hoist
• Features
• Compling with latest EU standard EN14492-2
• Upper and lower limit device
• Thermal protection terminal
• Anti-reverse winding device
• Copper winding motor
• Protection class lP54
• 4 ways directions working , up-down , right and left

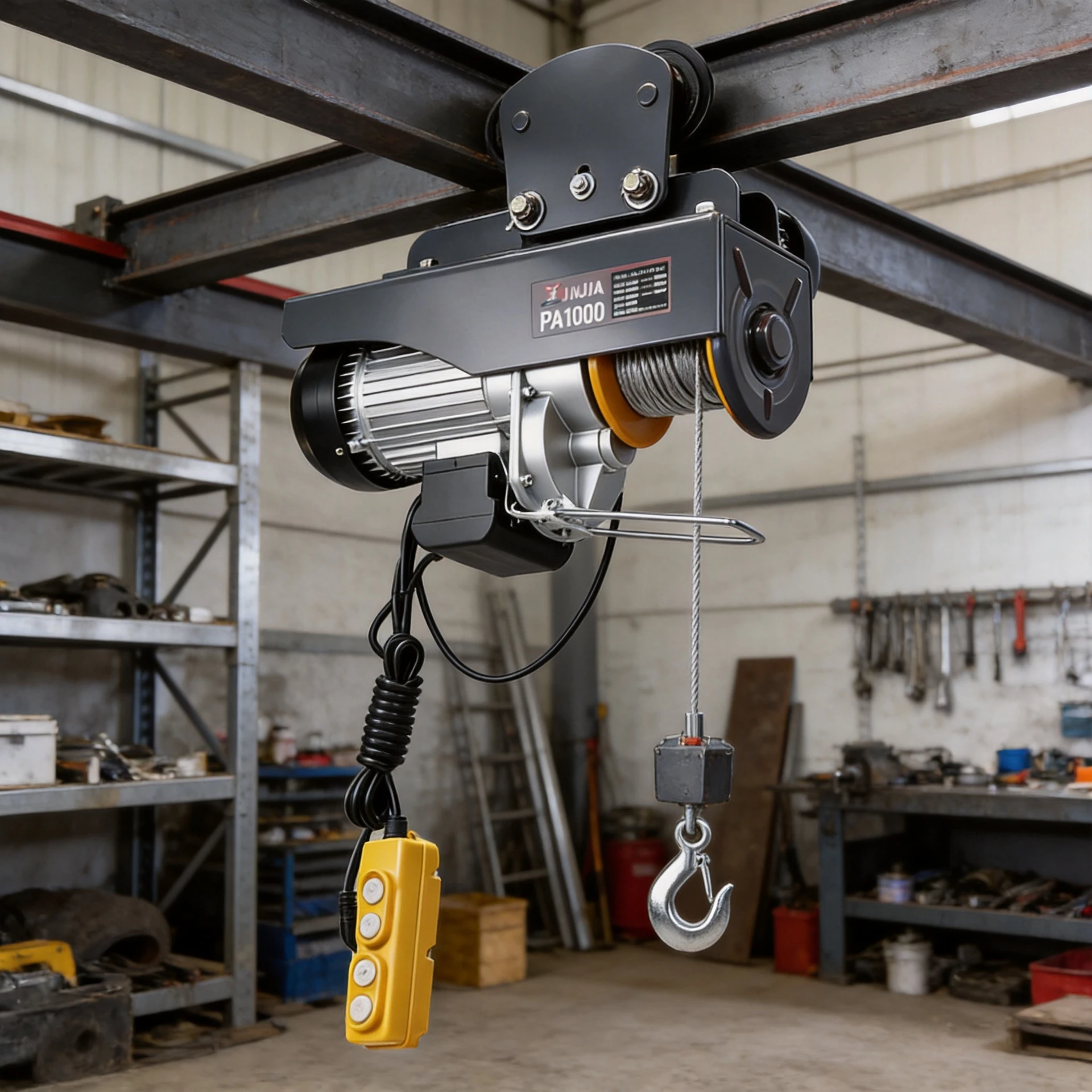

The mini electric hoist with trolley combines vertical lifting with horizontal movement along a compatible beam, making it suitable for material handling in workshops, warehouses, assembly areas and maintenance stations. Its compact design helps utilize overhead space for moving loads between designated work positions.
When selecting a model, consider the rated lifting capacity, lifting height, lifting speed, trolley travel speed, beam dimensions and available power supply. Confirm these specifications against the intended installation and operating conditions before ordering.
Mini electric hoists with trolley can be used in a range of light-duty material-handling applications, subject to the equipment's rated capacity and operating conditions.
Workshops: Lift and position components during assembly, repair, and routine maintenance.
Warehouses: Move suitable loads between designated handling positions.
Assembly Stations: Support repetitive lifting and positioning tasks along compatible overhead beams.
Maintenance Areas: Assist with positioning equipment components during servicing and replacement.
Small Production Facilities: Improve material handling where overhead lifting and horizontal travel are required.

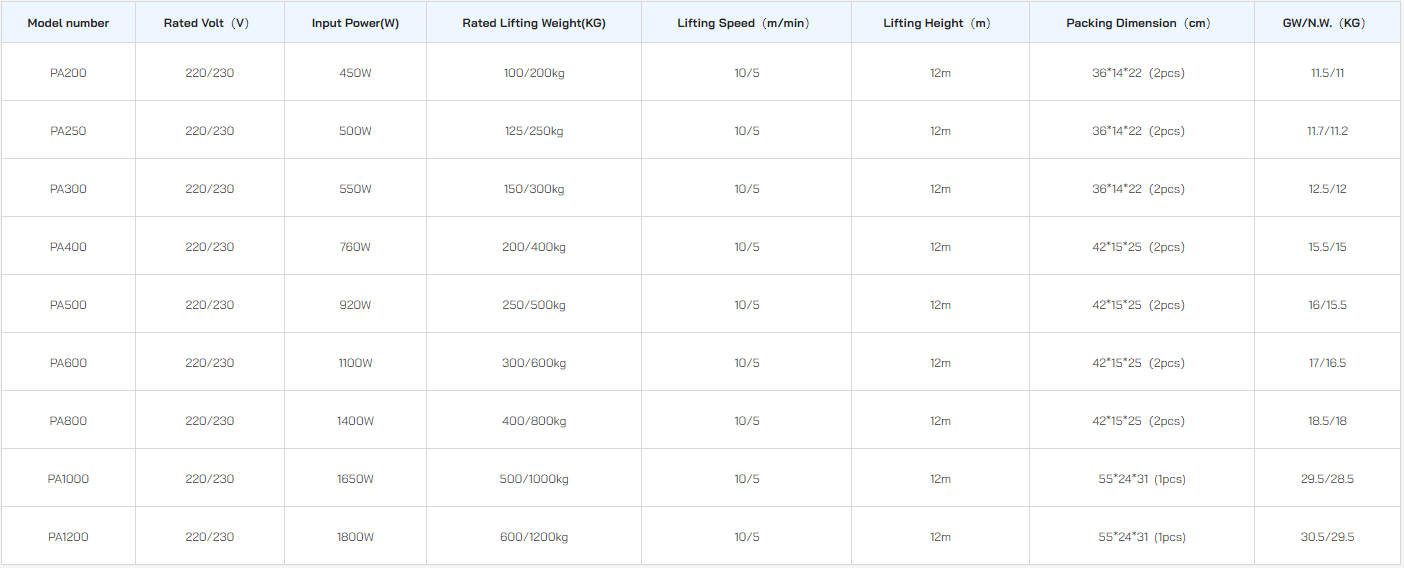

| Input Power(W) | Rated Lifting Weight(KG) | Lifting Speed（m/min) | Lifting Height（m） | Packing Dimension（cm） | GW/N.W. (KG) |
| 450W | 100/200kg | 10/5 | 12m | 36*14*22 (2pcs) | 11.5/11 |
| 500W | 125/250kg | 10/5 | 12m | 36*14*22 (2pcs) | 11.7/11.2 |
| 550W | 150/300kg | 10/5 | 12m | 36*14*22 (2pcs) | 12.5/12 |
| 760W | 200/400kg | 10/5 | 12m | 42*15*25 (2pcs) | 15.5/15 |
| 920W | 250/500kg | 10/5 | 12m | 42*15*25 (2pcs) | 16/15.5 |
| 1100W | 300/600kg | 10/5 | 12m | 42*15*25 (2pcs) | 17/16.5 |
| 1400W | 400/800kg | 10/5 | 12m | 42*15*25 (2pcs) | 18.5/18 |
| 1650W | 500/1000kg | 10/5 | 12m | 55*24*31 (1pcs) | 29.5/28.5 |
| 1800W | 600/1200kg | 10/5 | 12m | 55*24*31 (1pcs) | 30.5/29.5 |
Determine the maximum load to be lifted, including applicable lifting accessories. Choose a model with a suitable rated capacity and always operate within the manufacturer's specified limits.
The lifting height should accommodate the difference between the pickup position and the required placement position. Installation clearance and available headroom should also be considered.
Check the beam dimensions, trolley design, mounting arrangement, and permitted travel conditions before installation. Not every trolley fits every beam, so compatibility should be confirmed with the supplier.
Confirm the required voltage, frequency, control method, and electrical configuration for the intended installation. These details are particularly important for overseas projects with different power supply standards.

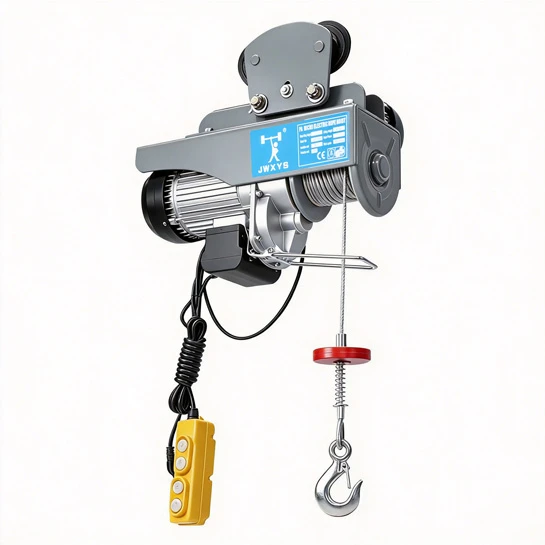

Mini electric wire rope hoist with trolley is a compact lifting device that combines vertical load lifting with horizontal movement along a compatible beam or track.
A fixed mini electric hoist lifts loads from a stationary position. A trolley-equipped model can also move the suspended load horizontally along its supporting beam.
Determine the maximum load, including relevant lifting accessories, and select equipment rated for the application. Confirm the required capacity and operating conditions with the manufacturer.
No. Compatibility depends on the trolley design, beam dimensions, mounting conditions, and permitted load. Verify the installation requirements before purchase.
Provide the required lifting capacity, lifting height, trolley configuration, beam dimensions, power supply, order quantity, and intended application. Drawings or installation photos can also help clarify project requirements.
Looking for a mini electric hoist with trolley for your material-handling application? Share your lifting requirements, installation conditions, and preferred configuration with Lihua Hoisting.
Our team can help you confirm the applicable model specifications and identify a suitable configuration for your project. Contact us to discuss your requirements and request a quotation.
