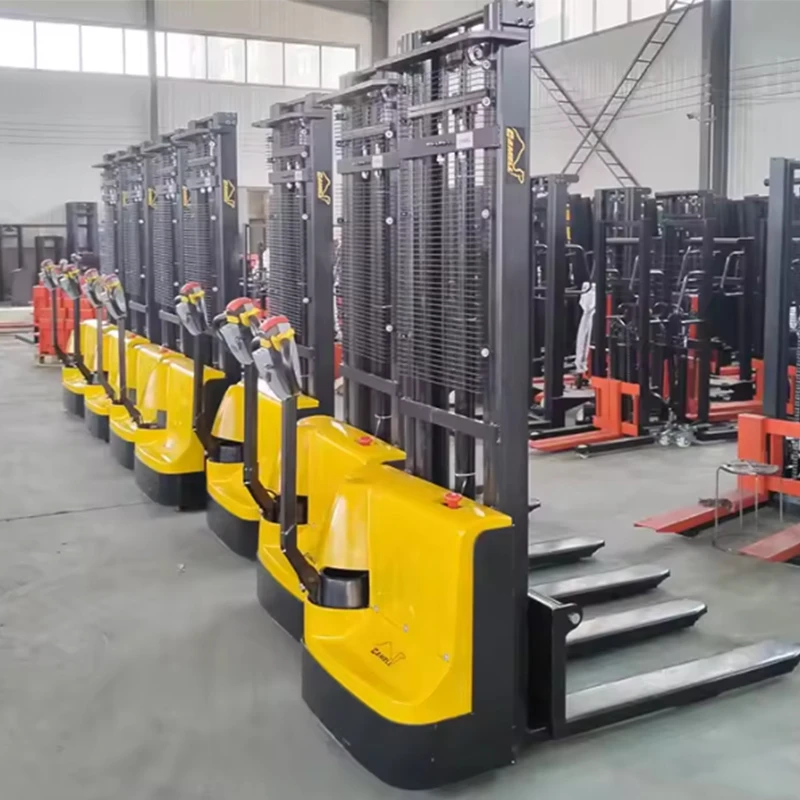

Forklift
Advantages:
• Compact structure, works well in narrow warehouse aisles
• Full electric travel and lifting, eco-friendly & low noise
• Good operating sight for accurate stacking
• Complete safety configurations
It is equipped with emergency stop button, anti-collision function and overload lifting
protection as standard. The equipment will stop running immediately once the control
handle is released, preventing safety accidents caused by misoperation.
• Smooth travel and lifting movement to protect fragile goods
| Full-Electric Forklift | ||||||||||
| Specifications | 1016 | 1020 | 1025 | 1030 | 1035 | 2016 | 2020 | 2025 | 2030 | 2035 |
| Rated Load (kg) | 1000kg | 2000kg | ||||||||
| Gantry Highest (mm) | 2015 | 2520 | 3015 | 3515 | 4015 | 2015 | 2520 | 3015 | 3515 | 4015 |
| Gantry Lowest (mm) | 2015 | 1555 | 1805 | 2015 | 2265 | 2015 | 1555 | 1805 | 2015 | 2265 |
| Vehicle width (mm) | 800mm | |||||||||
| Vehicle length(mm) | 1900mm | |||||||||
| Fork Min.(mm) | 85mm | |||||||||
| Fork Size(mm) | 1150*150*60mm | |||||||||
| Fork Adjustment(mm) | Outside width 640mm/Inside width 340mm | |||||||||
| Load wheels | 74*70*2pcs | |||||||||
| Steering Wheel | 180*50mm | |||||||||
| Ground Clearance(mm) | 25mm | |||||||||
| Pump Station Motor | 2200w | |||||||||
| Drive Motors | 1600w | |||||||||
| Charger | 24v15A | |||||||||
| Battery | 24v180AH | 48v196AH | ||||||||
| Vehicle Weight | 410 | 490 | 520 | 560 | 600 | 425 | 515 | 555 | 600 | 635 |
| Warm Tips: are measured manually, error±5% | ||||||||||
