Advantage :
• Wide Application
This hydraulic steel lifting jack works great for household, restaurant and factory use,
delivering stable lifting support for all scenarios.
• Sturdy Steel Build
Made of premium steel, the toe claw jack features solid structure, heavy load bearing
capacity and long service life even under frequent heavy-duty work.

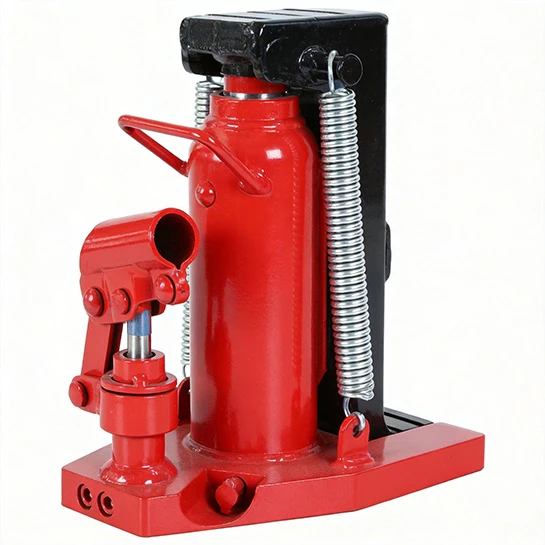

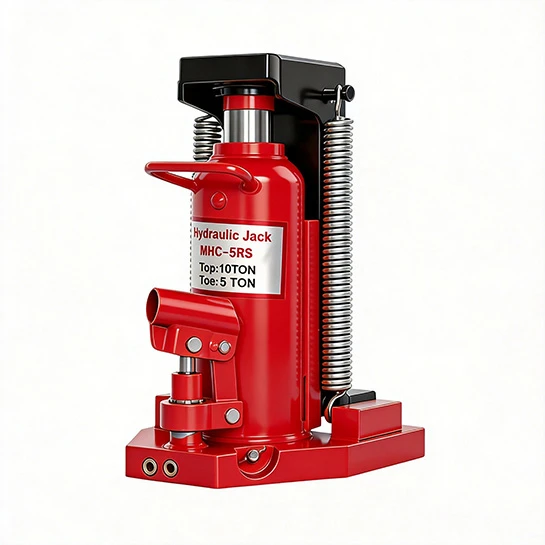

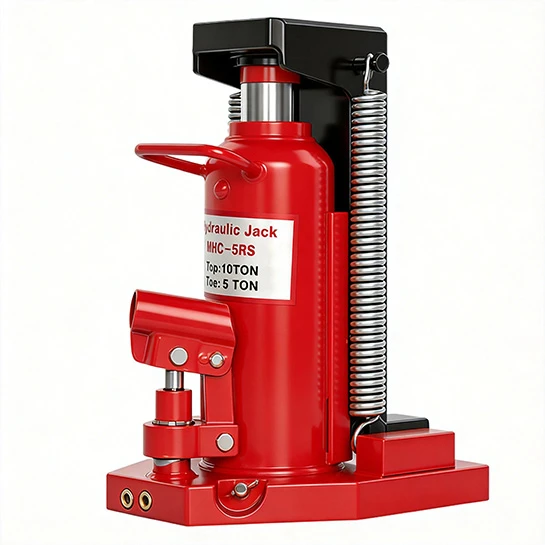

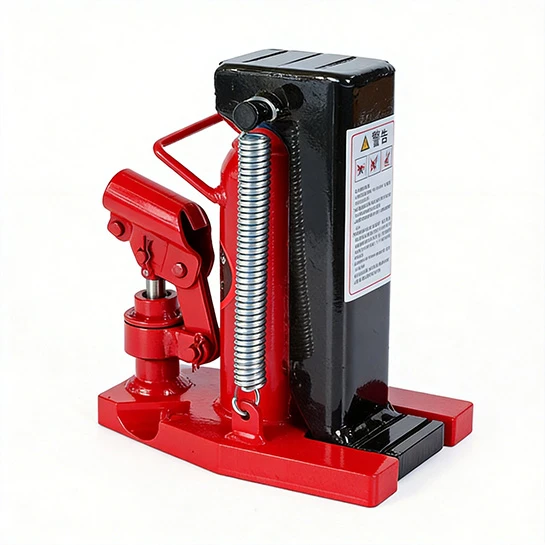

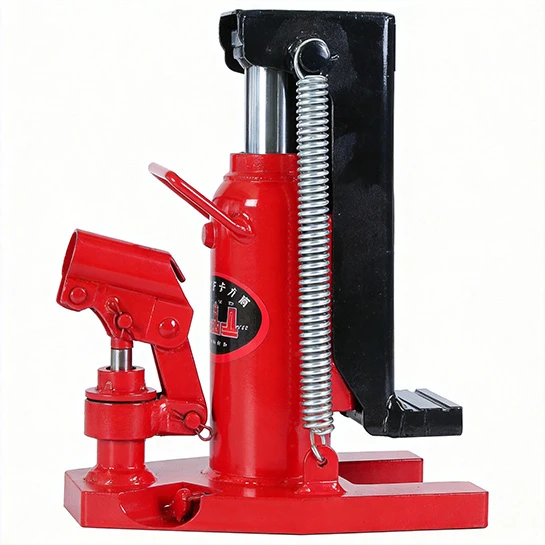

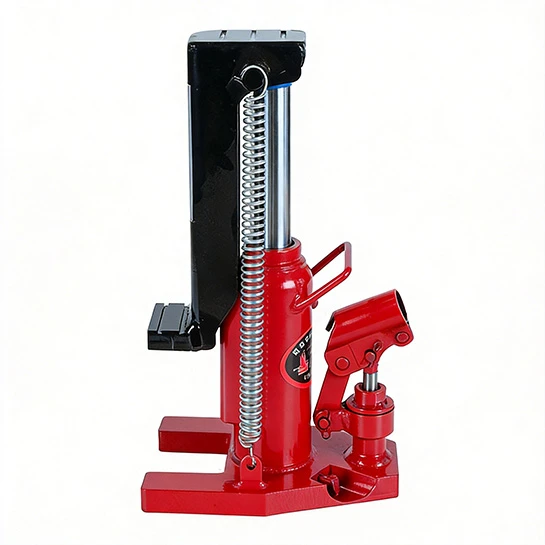

• Toe hydraulic jack is a low-clearance lifting tool.
It raises heavy loads with hydraulic power to push the claw
It works perfectly in tight spaces and for jobs that need accurate adjustment
• CE certificate available
| Model | Tonnage(T) | Stroke (mm) | Body height (mm) | Claw height (mm) | Weight (KG) | Volume (MM) | |
| claw | Top | ||||||
| QD-2.5 | 2.5 | 5 | 115 | 232 | 16 | 11 | 210X140X232 |
| QD-5 | 5 | 10 | 148 | 283 | 20 | 24 | 260X200X283 |
| QD-10 | 10 | 20 | 158 | 322 | 25 | 36 | 295X220X322 |
| QD-15 | 15 | 30 | 158 | 350 | 30 | 55 | 305x255x350 |
| QD-25 | 25 | 50 | 158 | 350 | 50 | 78 | 340x285x350 |
