Lifting Magnets
Advantages:
• Rely on permanent magnet, no power needed during lifting.Magnetism remains
when power fails, prevent workpiece falling accident.
• Uniform magnetic force, stable clamping and less workpiece vibration.
• Simple operation, easy switch between loading and unloading.
• Strong & stable holding force with high-performance magnet.
• Compact size and light weight, easy to move.
• Energy-saving & eco-friendly, zero power consumption, low running cost.
• Suitable for lifting steel plates, molds and other ferrous workpieces.
• Easy operation. Switch magnetize & demagnetize quickly with lever.

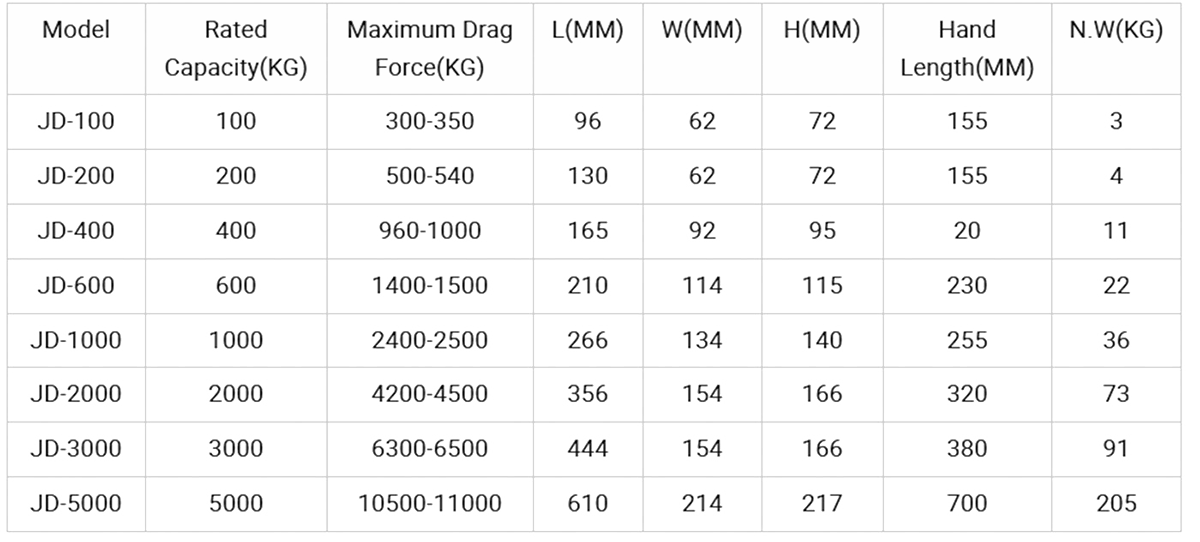

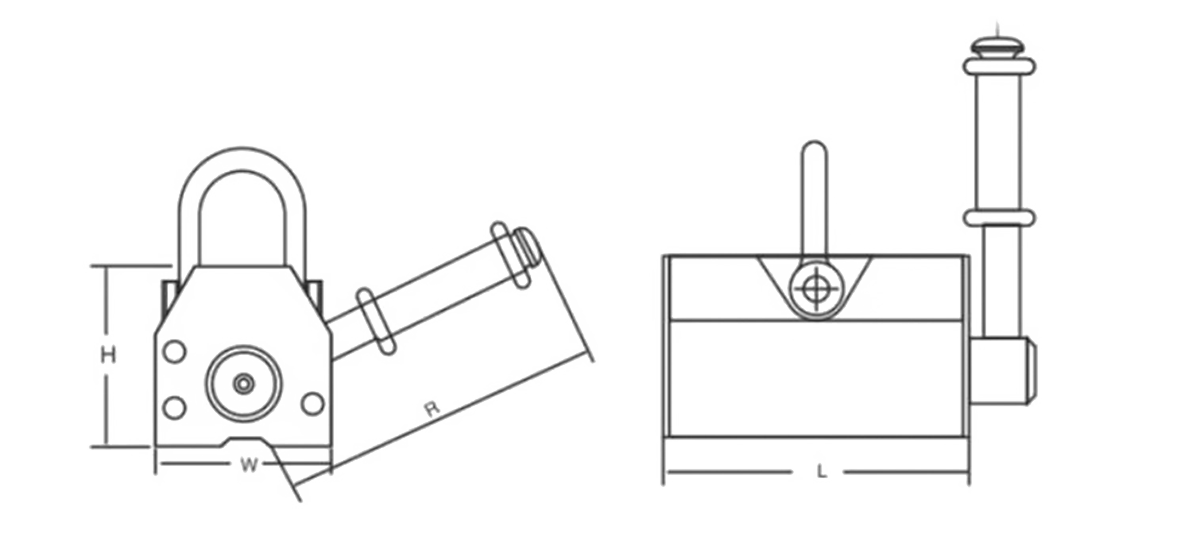

| Model | Rated Capacity(KG) | Maximum Drag Force(KG) | L(MM) | W(MM) | H(MM) | Hand Length(MM) | N.W(KG) |
| JD-100 | 100 | 300-350 | 96 | 62 | 72 | 155 | 3 |
| JD-200 | 200 | 500-540 | 130 | 62 | 72 | 155 | 4 |
| JD-400 | 400 | 960-1000 | 165 | 92 | 95 | 20 | 11 |
| JD-600 | 600 | 1400-1500 | 210 | 114 | 115 | 230 | 22 |
| JD-1000 | 1000 | 2400-2500 | 266 | 134 | 140 | 255 | 36 |
| JD-2000 | 2000 | 4200-4500 | 356 | 154 | 166 | 320 | 73 |
| JD-3000 | 3000 | 6300-6500 | 444 | 154 | 166 | 380 | 91 |
| JD-5000 | 5000 | 10500-11000 | 610 | 214 | 217 | 700 | 205 |
