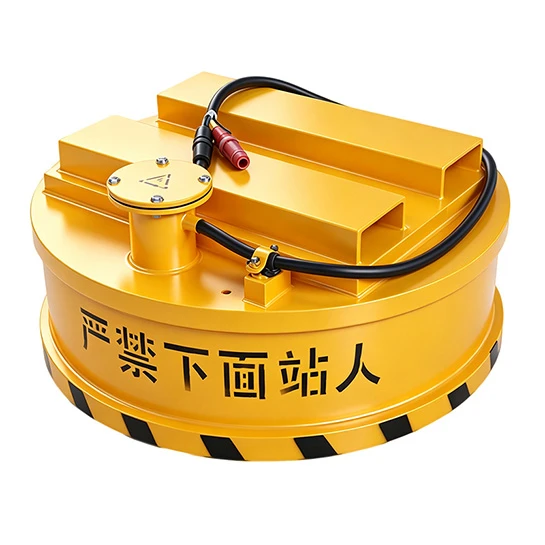

Lifting Magnets
Advantages:
• Simple and efficient work logic
• Quickly and firmly clamp workpieces or metal materials.
• After the power is cut off, the magnetic force is released, allowing the attached object
to be easily detached.
• Achieved operational convenience and safety, enabling rapid response to material
handling needs in industrial scenarios.
| Item/Model | Unit | YGML02 | YGML04 | YGML06 | YGML08 | YGML10 | YGML14 | YGML20 |
| Suitable Excavator | ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
| Weight | kg | 1400 | 1500 | 1890 | 2000 | 2200 | 2500 | 2800 |
| Power | kW | 5 | 8 | 8 | 10 | 10 | 15 | 15 |
| Outer Diameter | mm | 700 | 800 | 900 | 1100 | 1200 | 1300 | 1400 |
| Working Flow | lpm | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Working Pressure | bar | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
