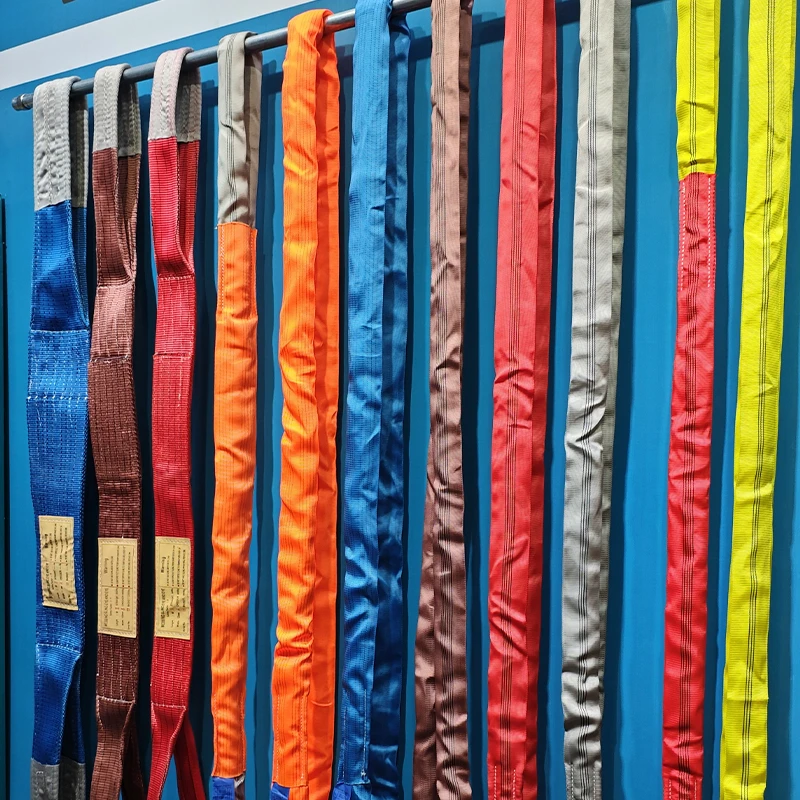

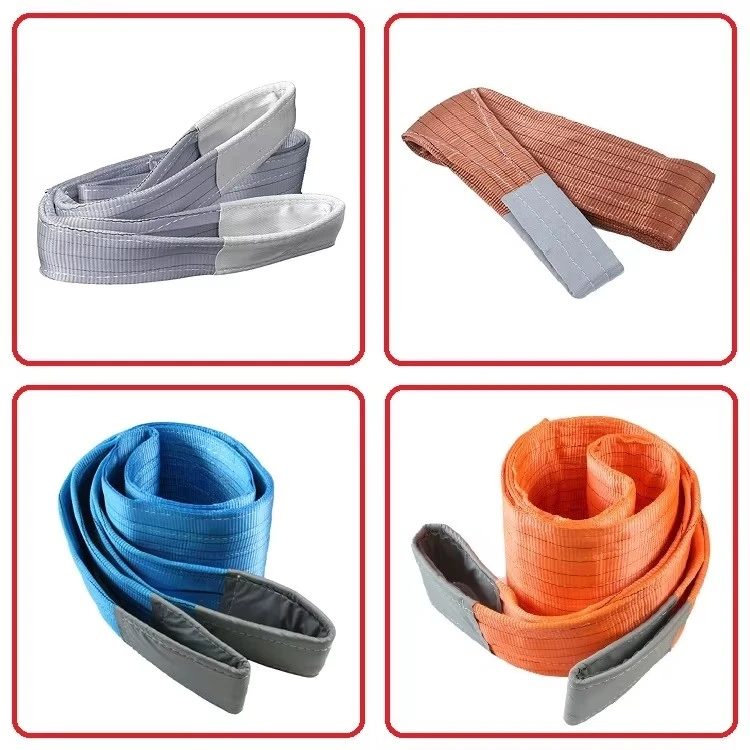

Flat lifting sling

Advantages:

• Compact structure & advanced craft offer excellent breaking elongation.

• Reinforced loops and woven edge guard against abrasion for long service life.

• Strict in-house production enables precise quality control.

• Max length 100m; standard safety factor 5:1, 6:1 , 7:1 can choice .

• Material: 100% high-tensile polyester. Endless inner bearing yarns; outer polyester

sleeve protects inner strands.

• Wide application: Factory, loading & construction lifting; safeguards cargo surface.

EB Webbing Sling' Lifting Method And Maximum Safety Working Load parameter.

Code	Color	Singie Max.Working Load Limit						2-Legs Max.Working Load Limit				Approx Width (mm)			Mini Length (m)	Max Length (m)
		Upright	Choked	β				Upright 45°	Choked 45°	Upright 45°-60°	Choked 45°-60°
		Upright	Choked	0°-7°	7°-45°	45°-60°	45°	Upright 45°	Choked 45°	Upright 45°-60°	Choked 45°-60°
EB-01	Purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	25	25	30	1	100
EB-02	Green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	50	60	1	100
EB-03	Yellow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	75	75	90	1	100
EB-04	Grey	4000	3200	8000	5600	4000	2600	5600	4480	4000	3200	100	100	120	1	100
EB-05	Red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	125	125	150	1	100
EB-06	Brown	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	150	150	180	1	100
EB-08	Blue	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	200	200	240	1	100
EB-10	Orange red	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	250	250	300	1	100
EB-12	Orange red	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	300	300	300	3	100
EB-15	Blue	15000	12000	40000	28000	15000	14000	28000	22400	15000	12000	200	200	240	3	100
EB-20	Orange red	20000	16000	60000	42000	20000	21000	42000	33600	20000	16000	250	250	300	3	100
EB-25	Orange red	25000	20000	50000	36000	25000	17500	3500	28000	25000	20000	300	300	300	3	100
EB-30	Orange red	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	300	300	300	3	100
EB-40	Orange red	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000				3	100
EB-50	Orange red	50000	40000	100000	70000	50000	36000	70000	56000	50000	40000				3	100
