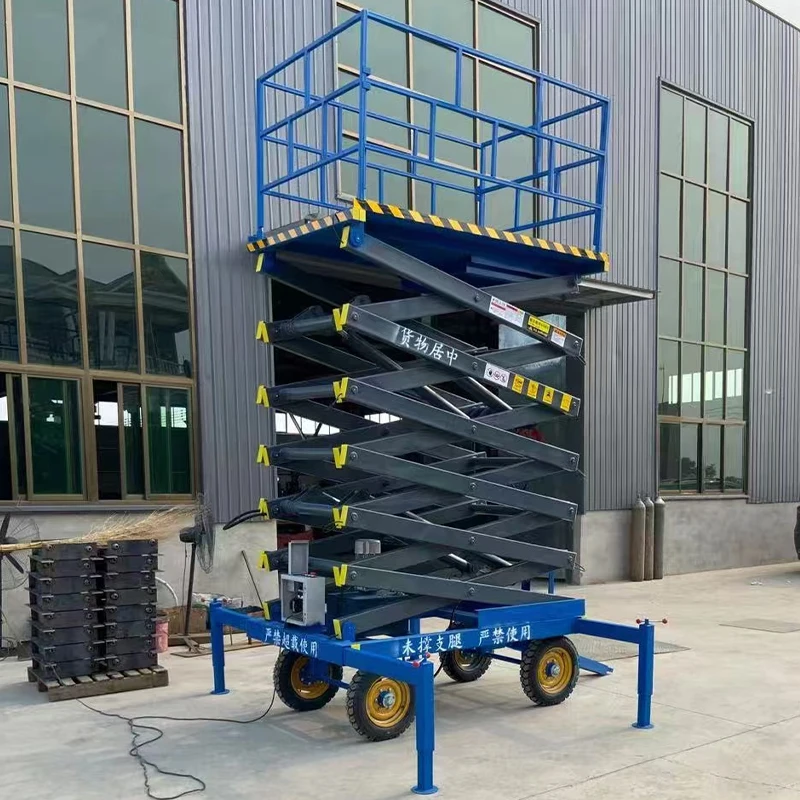

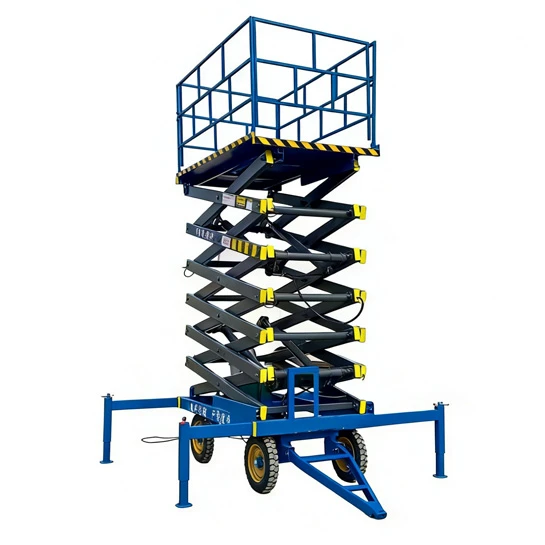

Moving Platform
Advantage:
• Mobile Scissor Lift, Stable Aerial Working Platform
• Hydraulic Lifting, Smooth & Stable Up/Down
• Built-in overload protection, automatically stop when overloaded
• Thickened high-strength steel scissor arms, anti-deformation & durable
• Four large wear-resistant rubber wheels, easy to push & move freely
• Four telescopic outriggers, fully expand to stabilize the whole machine
• Foldable compact structure, save storage space when not in use
| Table frame | Length*Width*Height 1800mm*1000mm*1300mm |
| Countertop panel | Lay 3mm anti slip pattemned board |
| Lift height load capacity | Raise 4000mm with a load capacity of 500kg |
| Hydraulic cylinder | Built in explosion-proof valve to prevent accidental descent |
| Pump station power unit | 3kw220v/50Hzl |
| Operation method | Distribution box buttons,handle switches |
| Seal ring | Imported sealing ring |
| Hydraulic oll | Anti-wear hydraulic oil |
| Spray treatment | Color according to customer requirements |
| Rust removal treatment | Rust removal treatment |
| Drive shaft pin | Made of 35 round steel and subjected to quenching and tempering treatment |
| Lifting speed | 4-6m/min+- |
| Hydraulic tubing | 4-16-43MPa |
| Foot horizontal tube | Length 900mm |
| Vertical leg support pipe | Total length 55cm |
Note: The height and width accept customization.
