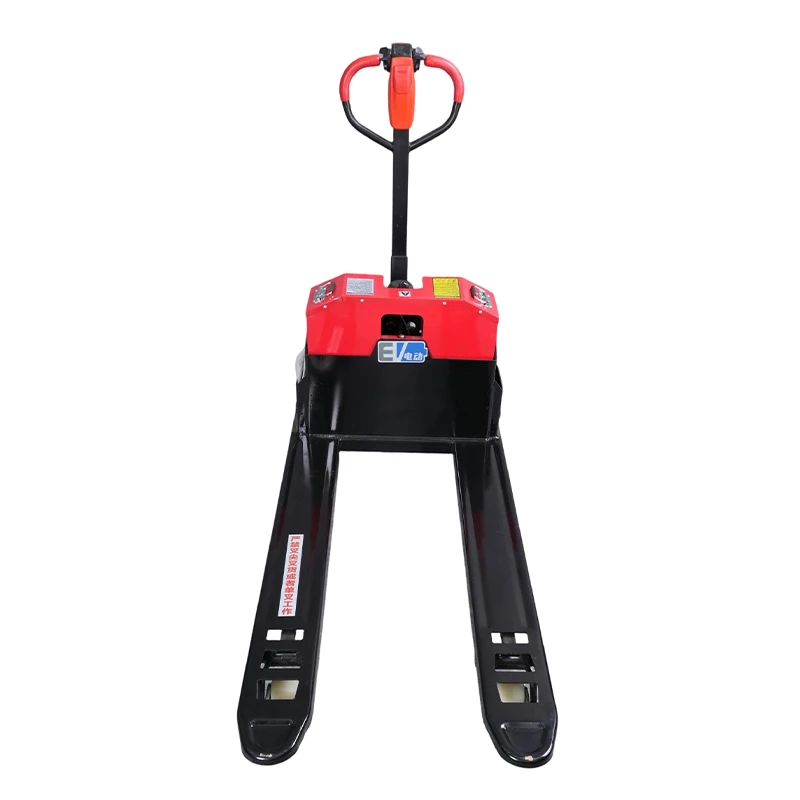

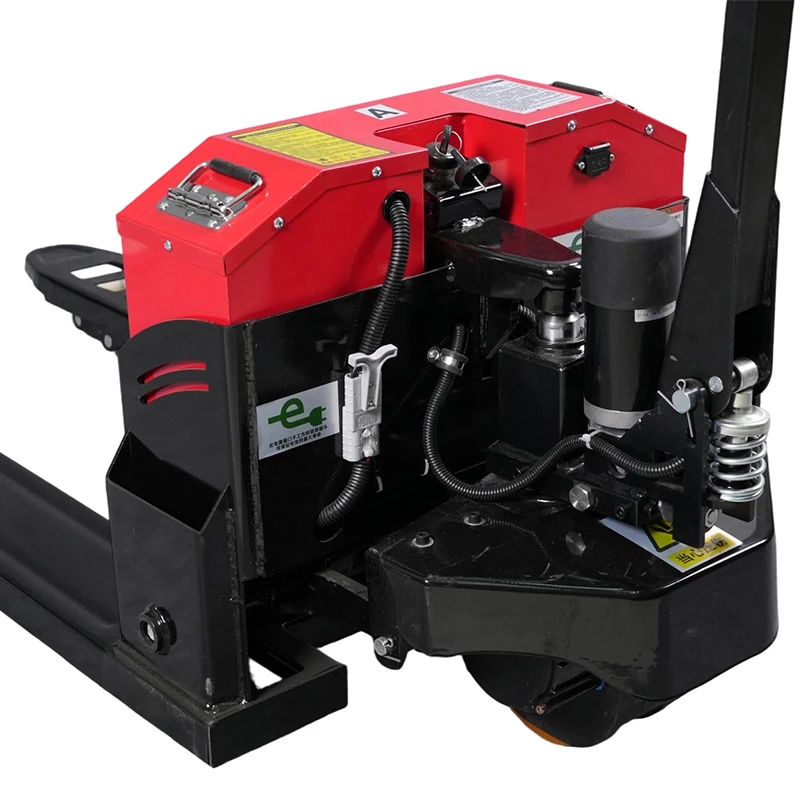

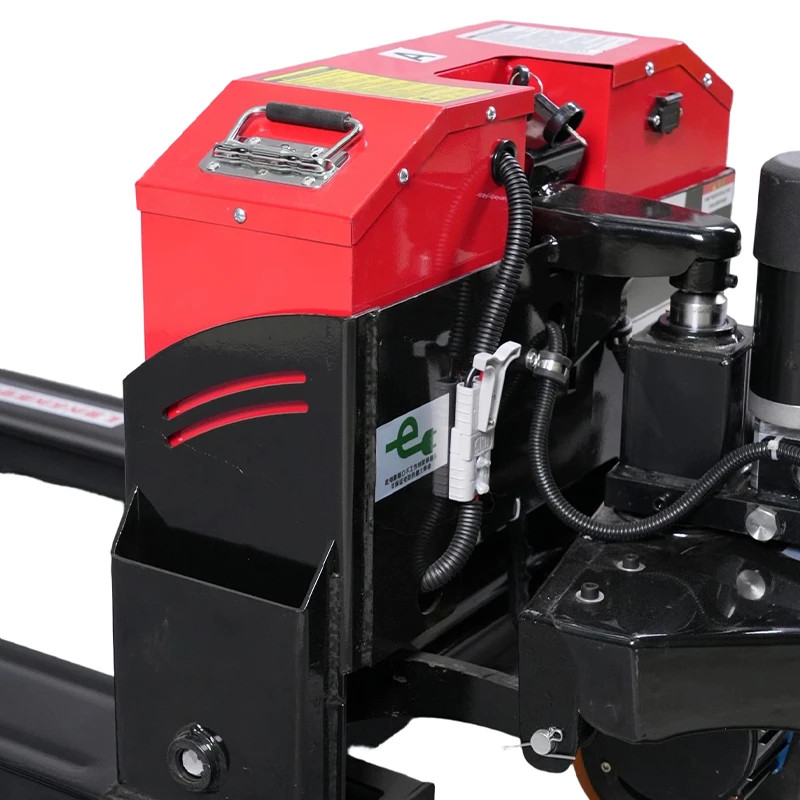

Pallet Truck
Advantages:
• Full electric traction & lifting
Electric drive and hydraulic lifting, greatly cut manual labor intensity;

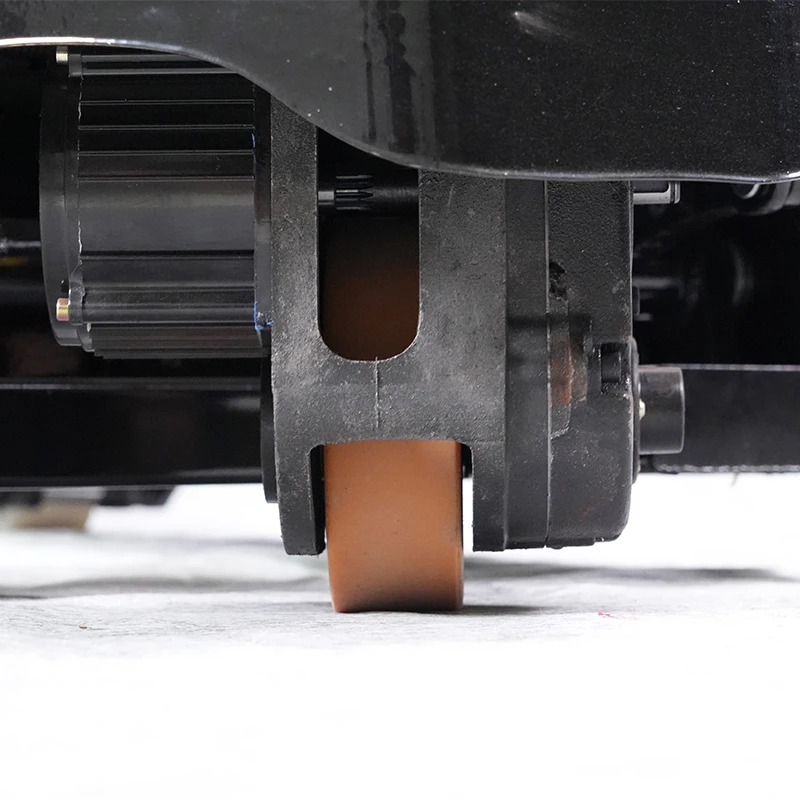

• Durable reinforced forks & reliable wheels
• Ergonomic control handle
Humanized tiller with emergency stop button; easy operation for new operators,
emergency brake improves workplace safety.
• Lightweight body, a good helper in narrow spaces
• Powerful force for easy handling and climbing
Equipped with a 48V brushless drive system, plentiful power output is strong, and
climbing with full load can reach 8%.
| Ordinary All-electric Truck | ||||||
| Fork model | Outer width:550mm Inside width:230mm Overall Height : 1260mm ; Outer width:685mm Inside width:365mm Overall Length : 1670mm |
|||||
| Elevation range of Forks |
80-200mm | |||||

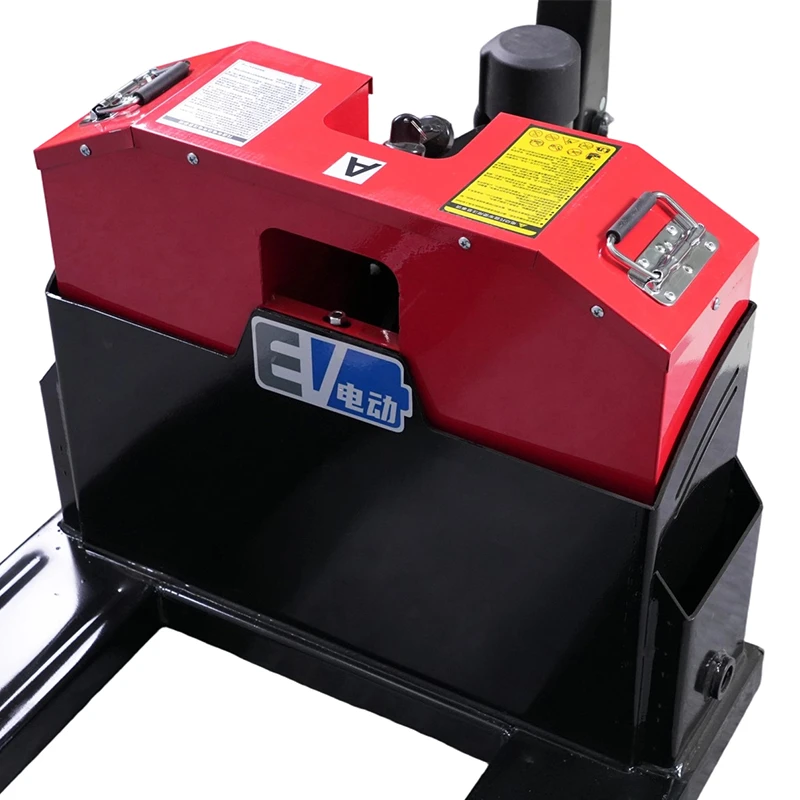

| Specifications | 1. Battery 48V 20A lead acid maintenance free (removable battery) | |||||
| 2. Brushless motor 1000w | ||||||
| 3. Maximum load 3 tons (recommended to be kept within 2.8 tons) | ||||||
| 4. Working hours 5-8 hours (2-3 days available for normal factory shipments) | ||||||
| 5.Fork length 1160mm | ||||||
| 6. Lifting Method : Electric | ||||||
| 7. Work Speed : 3-5km/h | ||||||
| 8.Steering Wheel Size : 160x55mm | ||||||
| 9. Front Wheel : 80x70mm | ||||||
| 10. Single Fork size : 160MM | ||||||
