Pallet Truck
• A simple third gear control handle.
• Galvernized pump with oil return device and safety relief valve.
• A high balance of the reinforcing brace.
• Optional: nylon wheels, polyurethane wheels, rubber wheels, fork length, width and color.
• Can be customized to meet specific requirements.
• With more than 14 oil input holes for daily maintenance.
• TUV'S CE certificate passed , ISO9001 quality control insurance

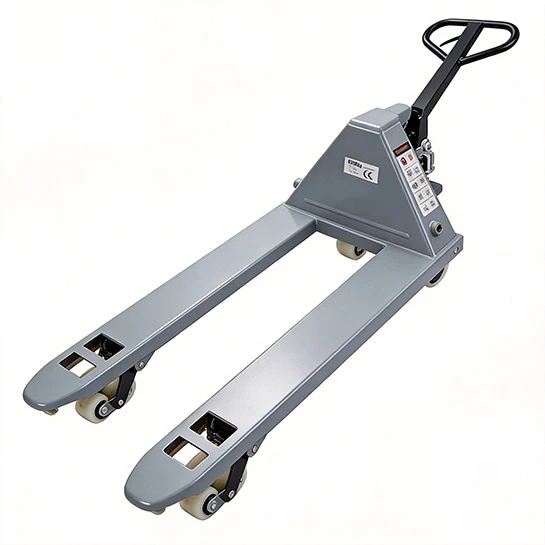

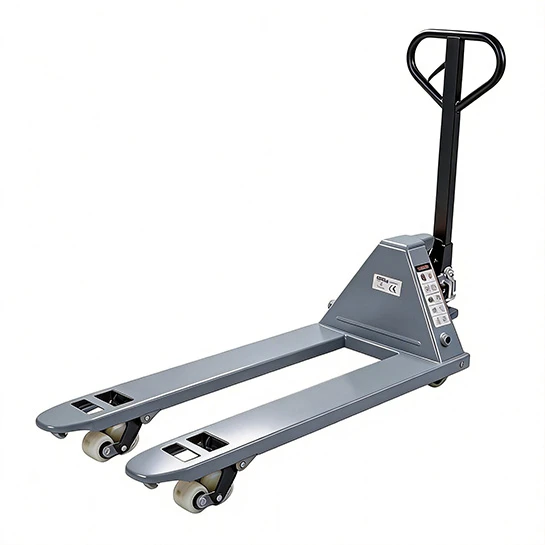

A hydraulic hand pallet truck is a manually operated material handling tool designed to lift and transport palletized goods over short distances. Using a hydraulic pump system, it raises the forks to lift a loaded pallet slightly off the floor, allowing operators to move materials through warehouses, workshops, distribution centers, and loading areas.
With its manual operation and straightforward handling mechanism, a hydraulic hand pallet truck is a practical choice for facilities that need flexible pallet movement without relying on powered lifting equipment. Selecting the right model depends on load capacity, fork dimensions, overall size, and the floor conditions of the working environment.

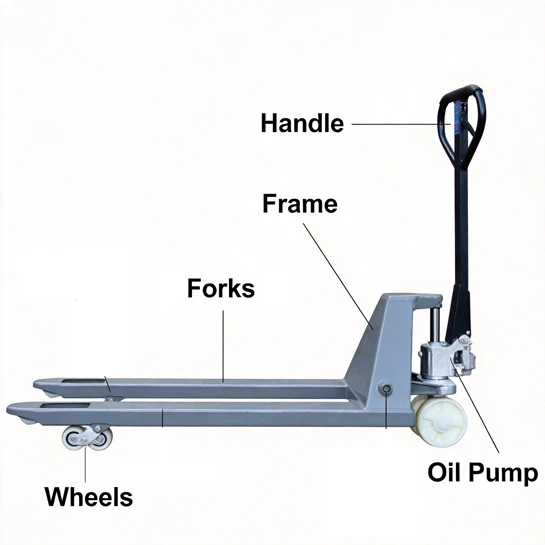

The hydraulic pump converts handle movement into lifting force, raising the forks to support a pallet during transport. The manual mechanism provides a practical solution for routine pallet handling where powered lifting equipment is not necessary.

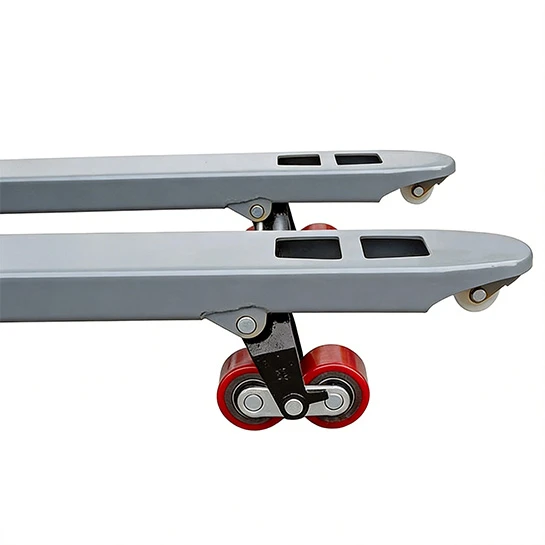

The forks are designed to enter compatible pallet openings and support the load during lifting and movement. Correct fork dimensions and suitable pallet clearance are important for stable handling and efficient operation.
The handle allows the operator to steer the truck and operate the hydraulic lifting and lowering functions. The operating method and handle design may vary by model, so review the product specifications when selecting equipment for frequent material handling.

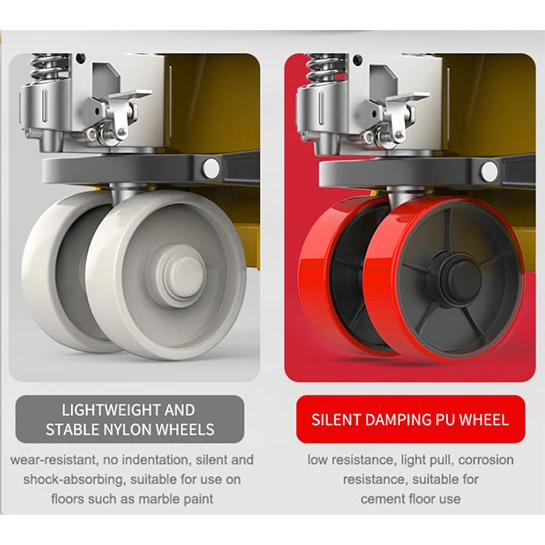

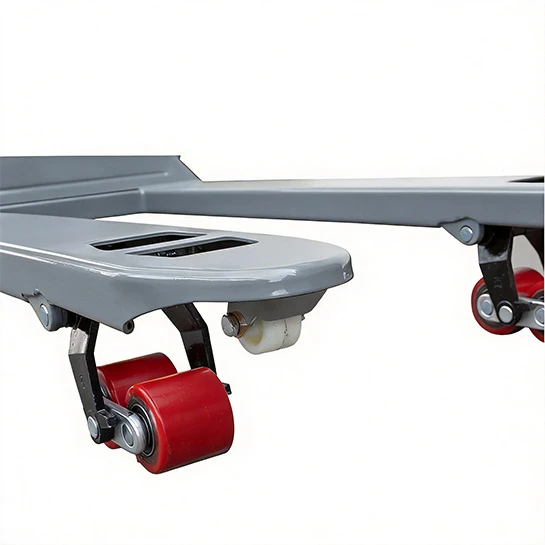

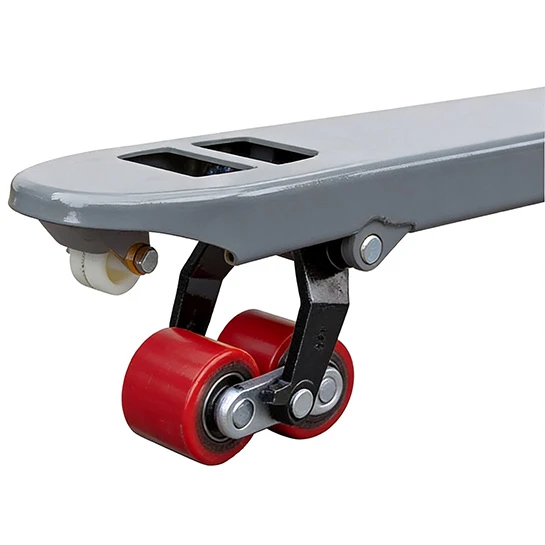

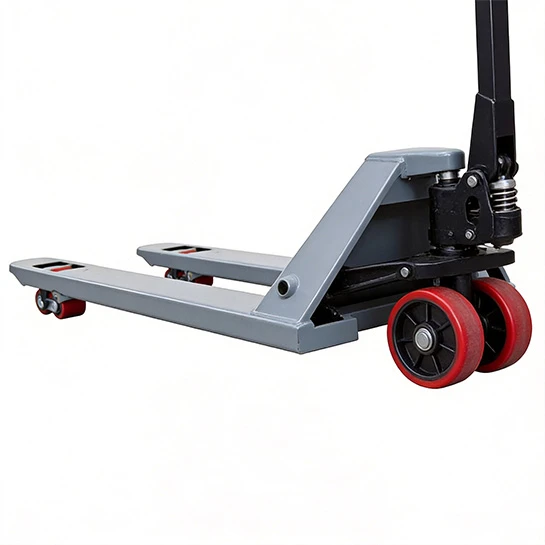

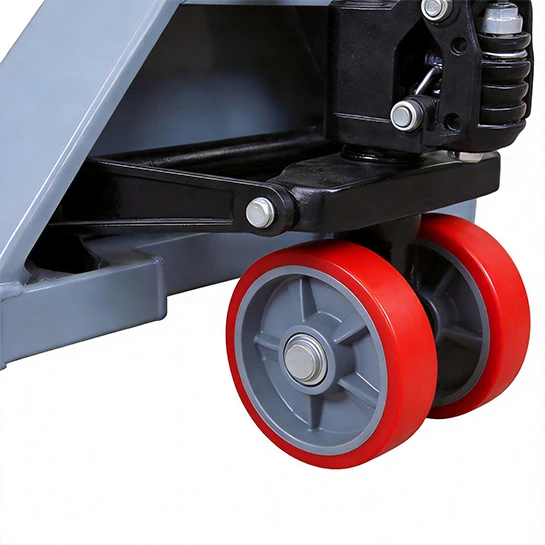

The frame, fork structure, and wheel assembly are important factors in the truck's service life and handling performance. Wheel material should be selected according to floor conditions, load requirements, noise considerations, and the expected operating environment.
A standard hydraulic hand pallet truck operates manually and does not require a battery or electrical connection. This makes it suitable for routine pallet movement in facilities where simple, readily available handling equipment is preferred.
|
Unit |
2T |
3T |
5T |
|
|
Rated load |
kg |
2000 |
3000 |
5000 |
|
Minimum Fork Height |
mm |
80 |
80 |
80 |
|
Maximum Fork Height |
mm |
200 |
200 |
200 |
|
Load Wheel Size |
mm |
180*50 |
180*85 |
180*85 |
|
Steering Wheel Size |
mm |
70*80 |
70*80 |
70*80 |
|
Total Height |
mm |
1220 |
1220 |
1220 |
|
Total Length |
mm |
1560 |
1560 |
1560 |
|
Fork Width |
mm |
550/685 |
550/685 |
550/685 |
|
Fork Length |
mm |
1150 |
1150 |
1150 |
|
Weight |
kg |
62/65/63 |
66/69/67 |
115/120/116 |
|
Wheel Material |
/ |
Nylon /PU/Rubber |
Nylon /PU/Rubber |
Nylon /PU/Rubber |
A hydraulic hand pallet truck helps operators move palletized inventory between storage areas, picking zones, and dispatch points. The selected model should match the pallet dimensions, load weight, and aisle width.
Production facilities can use hand pallet trucks to transport raw materials, packaging supplies, and finished products between workstations. Their manual operation makes them useful for short-distance internal material handling.
In suitable storage environments, a hand pallet truck supports the movement of palletized stock during receiving, replenishment, and inventory organization.
The truck can help move palletized goods across suitable level surfaces near loading areas. It is not a substitute for equipment designed to lift goods directly onto or off a vehicle where dock height or ground clearance presents a challenge.
Logistics and packaging teams can use hydraulic hand pallet trucks to move prepared shipments and grouped products between packing stations, staging areas, and dispatch zones.
It is a manually operated material handling device that uses a hydraulic pump to raise palletized loads for short-distance transport.
Select a model rated to handle your maximum pallet load. Confirm the weight of the goods and packaging before choosing the truck.
It can handle pallets that are compatible with the fork length, fork width, and entry clearance of the selected model. Check the dimensions before ordering.
The choice depends on the floor surface, load, noise requirements, and operating conditions. Consult the supplier for the most suitable wheel configuration.
No. A standard manual hydraulic pallet truck uses a hand-operated hydraulic system and does not require an external power supply.
Looking for a hydraulic hand pallet truck for your warehouse, workshop, or logistics operation? Share your load requirements, pallet dimensions, and working conditions with Lihua Hoisting.
Our team can help you confirm the available models, compare fork dimensions and wheel configurations, and identify a suitable pallet handling solution for your application. Contact us to request a quotation and discuss your product requirements.
