Chain Hoist
Advantages:
● Product overall performance:Product quality is reliable, easy and simple to operate
● Fulfillment capability:Products shipped quickly
● Service capability:Smooth and efficient communication
● Certificate: CE and ISO9001

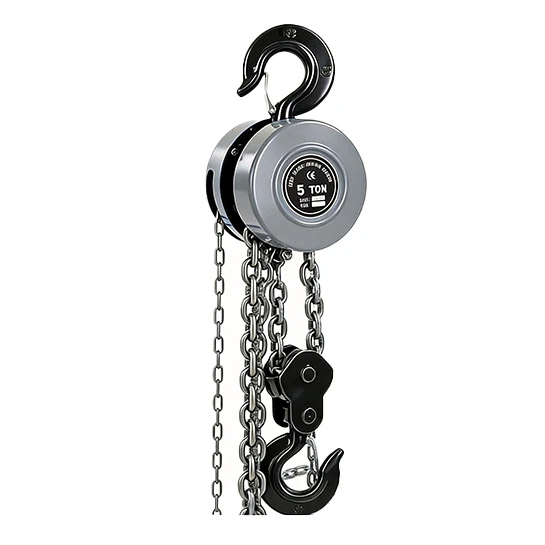

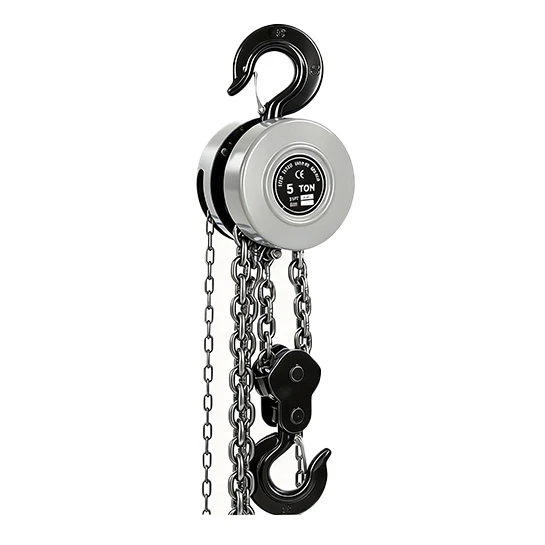

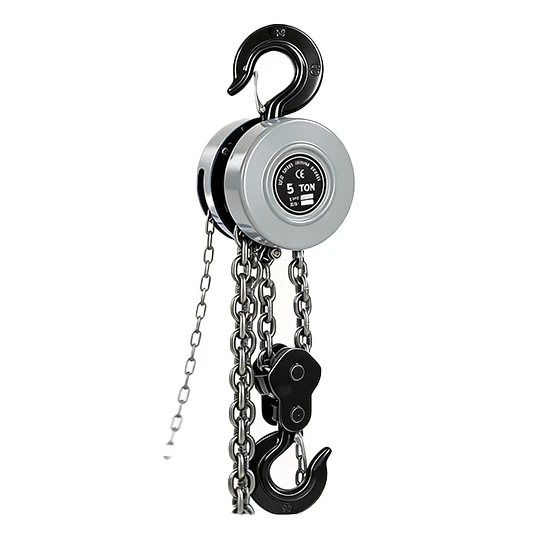

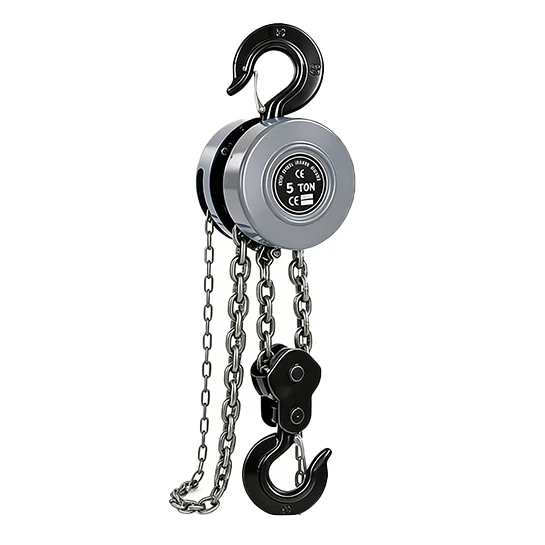

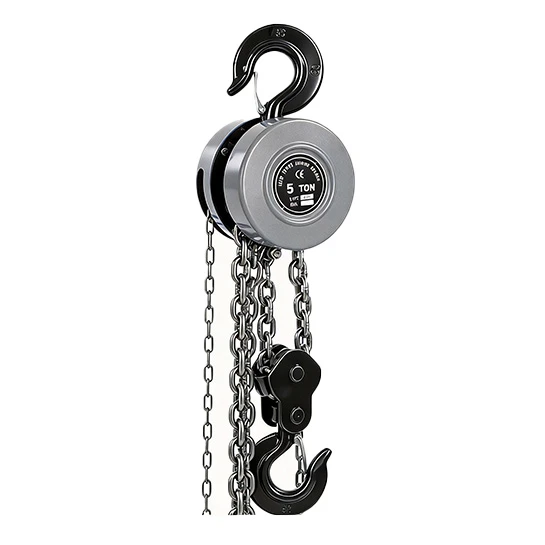

The Lihua HSZ type chain block is a manually operated lifting device designed for raising and lowering loads without an electrical power supply. It is suitable for material handling, equipment installation, maintenance, and lifting operations in workshops, warehouses, construction sites, and other industrial environments.

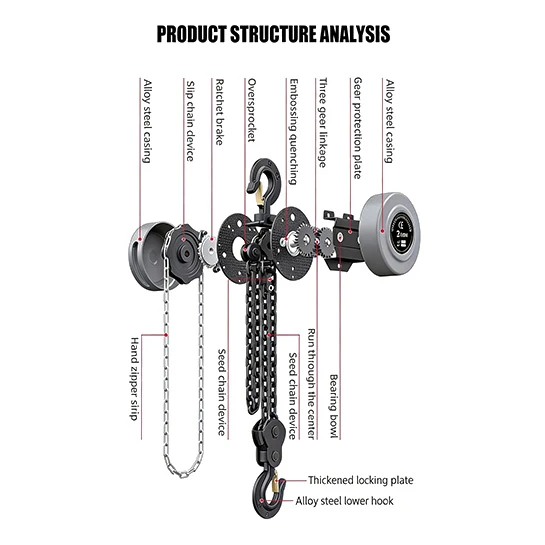

Featuring a hand chain operating mechanism, a load chain, and upper and lower hooks, the HSZ chain block provides a practical lifting solution for locations where portable equipment and independent manual operation are required. Different rated capacities and lifting configurations are available to accommodate varying load requirements.
The HSZ type chain block operates through a hand chain, making it suitable for lifting tasks in locations without convenient access to electrical power. Its manually controlled operation can be useful for maintenance work, temporary lifting positions, and outdoor applications where a powered hoist may not be practical.
The compact mechanical design allows the chain block to be installed at a suitable fixed lifting point or used with a compatible manual trolley. Before installation, confirm the available headroom, mounting arrangement, supporting structure, and rated load capacity.
The load chain transfers the lifting force to the suspended load, while the upper and lower hooks provide the connection points. The chain, hooks, safety latches, and other load-bearing components should be inspected before use and maintained according to the manufacturer's instructions.
The mechanical braking mechanism is designed to hold the load during lifting operations within the equipment's rated working conditions. Operators should follow the manufacturer's operating instructions and never exceed the rated capacity or use the chain block to lift people.
HSZ type chain blocks are available in different capacity ranges and chain configurations. Selecting the correct model requires consideration of the maximum suspended load, lifting height, available headroom, and frequency of use.
|
Model number |
Capacity(t) |
Standard Lift(m) |
Hmin Headroom(hook to hook)Hmin (mm) |
Chainpull to lift full load（Newton） |
Diameter of load Chain（mm） |
|
HSZ-0.5T |
0.5T |
2.5m |
270mm |
225N |
6mm |
|
HSZ-1T |
1T |
2.5m |
270mm |
309N |
6mm |
|
HSZ-1.5T |
1.5T |
2.5m |
368mm |
343N |
6mm |
|
HSZ-2T |
2T |
2.5m |
444mm |
314N |
6mm |
|
HSZ-3T |
3T |
3m |
486mm |
343N |
8mm |
|
HSZ-5T |
5T |
3m |
646mm |
383N |
10mm |
|
HSZ-10T |
10T |
3m |
700mm |
392N |
10mm |
|
HSZ-20T |
20T |
3m |
1000mm |
392N |
10mm |
The HSZ chain block can assist with lifting and positioning machinery components, workpieces, and other loads during assembly, repair, and maintenance. The selected capacity must match the load and the supporting structure.
In warehouses and storage facilities, a manual chain block can be used for controlled vertical lifting at designated handling points. Where horizontal movement is necessary, a compatible manual trolley can be considered.
The HSZ type chain block can support suitable lifting tasks during equipment installation and structural assembly, provided that the lifting point, anchorage, and operating conditions meet the applicable requirements.
For maintenance and repair work, the chain block provides a manual means of raising or positioning components when an appropriately rated lifting point is available.
Because manual operation does not require an electrical connection, the HSZ chain block can be useful in remote work areas and temporary lifting locations where power availability is limited.
An HSZ type chain block is a manually operated lifting device that uses a hand chain and load chain to raise and lower loads without electricity.
No. It operates manually through the hand chain and does not require an electrical power supply.
The available capacity depends on the model range. Contact Lihua Hoisting for the current specifications and available capacity options.
Yes, when paired with a compatible manual trolley and a suitable supporting beam. Check the trolley's rated capacity and beam compatibility before installation.
Lifting height options depend on the available configuration. Specify the required lifting height when requesting a quotation so that the appropriate model can be confirmed.
Looking for an HSZ type chain block for your lifting application? Contact Lihua Hoisting with your required capacity, lifting height, and installation details.
Our team can help you confirm the available models, review technical specifications, and identify a suitable manual lifting configuration for your project. Request a quotation to discuss product availability and order requirements.
