Lever Hoist
Advantages
• Compact & lightweight, easy to carry
• No power supply required, works anywhere without electricity
• Simple operation, single-person usable
• Wide application: lifting, pulling, tensioning
• Robust structure, low maintenance, low failure rate
• Self-locking brake for safe load holding
• Equipped with TUV & ISO9001 certification, reliable quality & compliant with EU standards

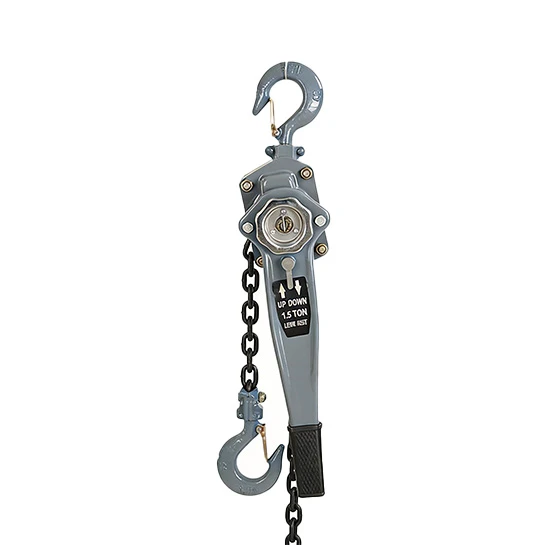

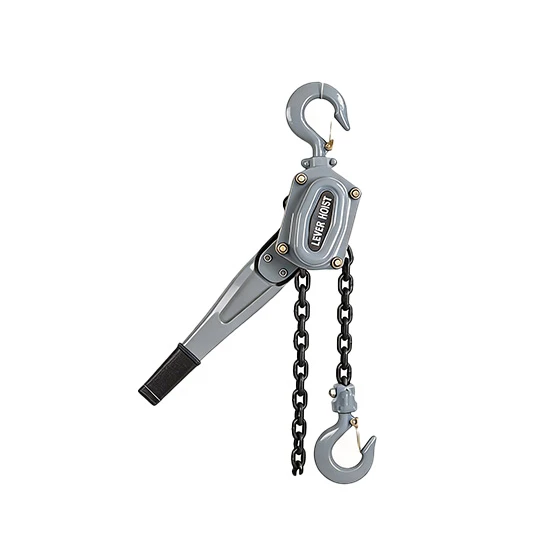

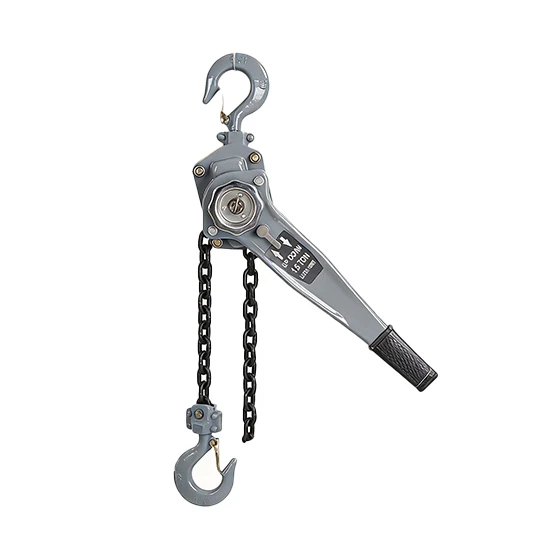

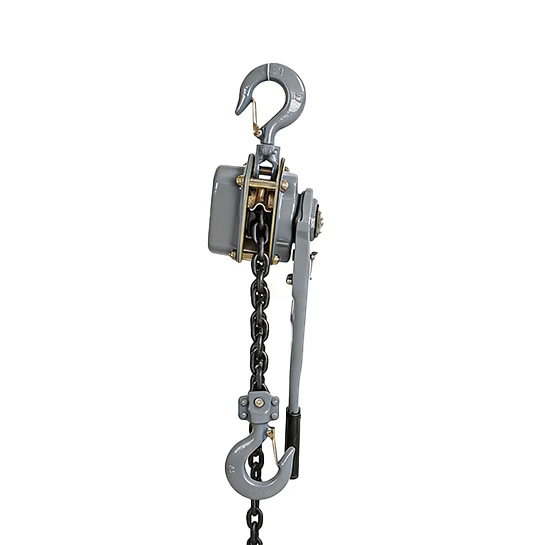

The HSH lever hoist is a manually operated lifting and pulling device designed for lifting, lowering, tensioning, and positioning loads in industrial and maintenance applications. Operated by a hand lever, it provides controlled load movement without requiring an electrical power supply.
Suitable for workshops, construction sites, equipment installation, and machinery maintenance, the HSH lever hoist is a practical option for applications where portable operation and flexible positioning are required. Selecting the appropriate model depends on the rated capacity, lifting height, available headroom, and intended operating conditions.
The HSH lever hoist uses a hand lever to operate the lifting mechanism. This design allows operators to raise or lower loads and perform suitable pulling or tensioning tasks without relying on an electrical power source.
Its compact construction makes the HSH lever hoist suitable for work areas where installation space is limited or lifting equipment needs to be moved between workstations. The actual suitability depends on the model dimensions, rated capacity, and installation conditions.
The load chain transfers force during lifting, while the upper and lower hooks provide connection points for the supporting structure and load. Before operation, inspect the chain, hooks, safety latches, and other load-bearing components for damage, deformation, or abnormal wear.
The lever-operated mechanism allows incremental load movement, making the hoist useful for positioning equipment and components during installation or maintenance. Operators must follow the manufacturer's instructions and keep the load within the equipment's rated working limits.
Depending on the selected model and approved operating configuration, an HSH lever hoist can support vertical lifting and suitable horizontal pulling or tensioning tasks. The anchorage, load direction, and supporting structure must be appropriate for the intended operation.
|
Lever Hoist |
0.75T |
1.5T |
3T |
6T |
9T |
|
Lifting Height（m） |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Hoisting Chain Diameter（mm） |
6.3 |
7.1 |
9.1 |
9.1 |
9.1 |
|
Number of lifting chain rows |
1 |
1 |
1 |
2 |
3 |
|
Weight（kg） |
7/8 |
11.5/12.5 |
18/19 |
28/29 |
45/46 |
The HSH lever hoist can help lift and position machinery components during equipment installation, adjustment, and repair. Its manual operation is useful where precise positioning is required and electrical lifting equipment is not practical.
On suitable construction sites, a lever hoist can assist with positioning structural components and performing approved pulling or tensioning tasks. The supporting points and equipment configuration must be verified before use.
Manufacturing and repair workshops can use an HSH lever hoist for handling components, adjusting equipment positions, and carrying out maintenance operations within the rated capacity.
During installation and servicing, the lever hoist can help move components incrementally into position. Operators should ensure that the load is properly secured and that no personnel are exposed to suspended or moving loads.
Because the HSH lever hoist is manually operated, it can be used in suitable locations where electrical power is unavailable or inconvenient. Environmental conditions, corrosion exposure, and operating requirements should be considered when selecting a model.
Both products operate manually, but their operating mechanisms and typical applications differ.
| Comparison | HSH Lever Hoist | HSZ Chain Block |
|---|---|---|
| Operating Mechanism | Hand lever | Hand chain |
| Typical Operation | Lifting, lowering, and suitable pulling tasks | Primarily vertical lifting and lowering |
| Working Position | Can be suitable for more flexible positioning, subject to model requirements | Generally used at a suspended lifting point |
| Space Considerations | Requires sufficient lever operating clearance | Requires sufficient hand-chain operating clearance |
| Selection Factors | Capacity, lifting height, lever clearance, load direction | Capacity, lifting height, headroom, chain configuration |
The right choice depends on the required movement, installation conditions, and manufacturer's operating specifications.
An HSH lever hoist is a manually operated device that uses a hand lever and load chain to lift, lower, or perform approved pulling tasks.
No. It operates manually and does not require an electrical power supply.
It may be used for suitable pulling applications when the model, load direction, anchorage, and operating conditions permit. Always follow the manufacturer's instructions.
Determine the total load, including applicable lifting accessories, and select a model with an adequate rated capacity for the intended operation.
Provide the required rated capacity, lifting height, operating application, available installation clearance, order quantity, and any special environmental or configuration requirements.
Looking for an HSH lever hoist for your lifting, positioning, or pulling application? Contact Lihua Hoisting with your capacity requirements, operating conditions, and installation details.
Our team can help you confirm available models, review technical specifications, and identify a suitable manual lifting solution for your project. Request a quotation to discuss product options and order requirements.
